AOD516 - Alpha & Omega Semiconductor

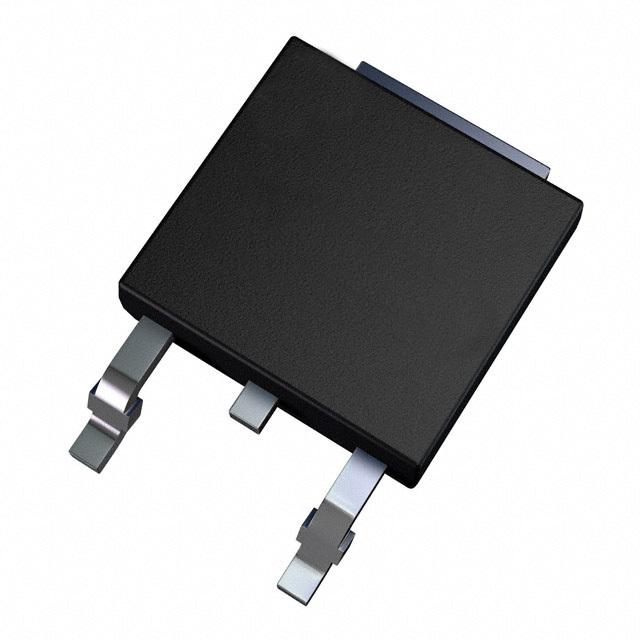

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AOD516
Manufacturer

Alpha & Omega Semiconductor
ChipWorker Part#

CW13298721
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

DPAK N-CH 30V 46A
Documentation

Datasheet

AOD516 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AOD516 Specifications

Attribute	Attribute Value

Part Number	AOD516
Manufacturer	Alpha & Omega Semiconductor
ChipWorker Part#	CW13298721
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	TO-252-3
Polarity	N-CH
Power Dissipation	50 W
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	46A
Input Capacitance (Ciss)	1229pF @15V(Vds)
Input Power (Max)	50 W
Power Dissipation (Max)	2.5W (Ta), 50W (Tc)
	expand all
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Discontinued at Digi-Key
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR

Product Description

N-Channel 30V 18A (Ta), 46A (Tc) 2.5W (Ta), 50W (Tc) Surface Mount TO-252, (D-Pak)
