AP4310 - BCD Semiconductor

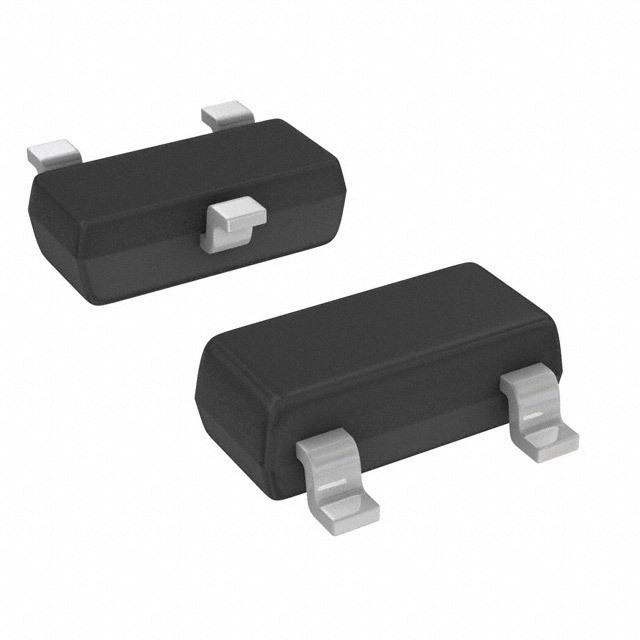

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AP4310
Manufacturer

BCD Semiconductor
ChipWorker Part#

CW81898037
Package

SOIC8
Description

DUAL OP AMP AND VOLTAGE REFERENCE
Documentation

Datasheet

AP4310 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AP4310 Specifications

Attribute	Attribute Value

Part Number	AP4310
Manufacturer	BCD Semiconductor
ChipWorker Part#	CW81898037
Documentation	Datasheet
Case/Package	SOIC8
	expand all
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

General Description
The AP4310 is a monolithic IC specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies.
The device contains two OpAmps and a 2.5V preci sion shunt voltage reference. Op Amp 1 is designed for voltage control with its non-inverting input internally connects to the output of the shunt regulator. Op Amp 2 is for current control with both inputs uncommitted. The IC offers the power converter designer a control solution that features increased precision with a corresponding reduction in system complexity and cost.
The AP4310 is available in standard packages of DIP-8 and SOIC-8.
Features
Op Amp
· Input Offset Voltage: 0.5mV
· Supply Current: 75µA per Op Amp at 5.0V Supply Voltage
· Unity Gain Bandwidth: 1MHz
· Output Voltage Swing: 0 to (VCC -1.5) V
· Power Supply Range: 3 to 36V
Voltage Reference
· Fixed Output Voltage Reference: 2.5V
· Voltage Tolerance: ± 0.4%, ± 1%
· Sink Current Capability: 0.05 to 80mA
· Typical Output Impedance: 0.2Ω
Applications
· Battery Charger
· Switching Power Supply
