BGT24MTR11
Manufacturer

Infineon
ChipWorker Part#

CW209466884
Package

VQFN-32-9
Description

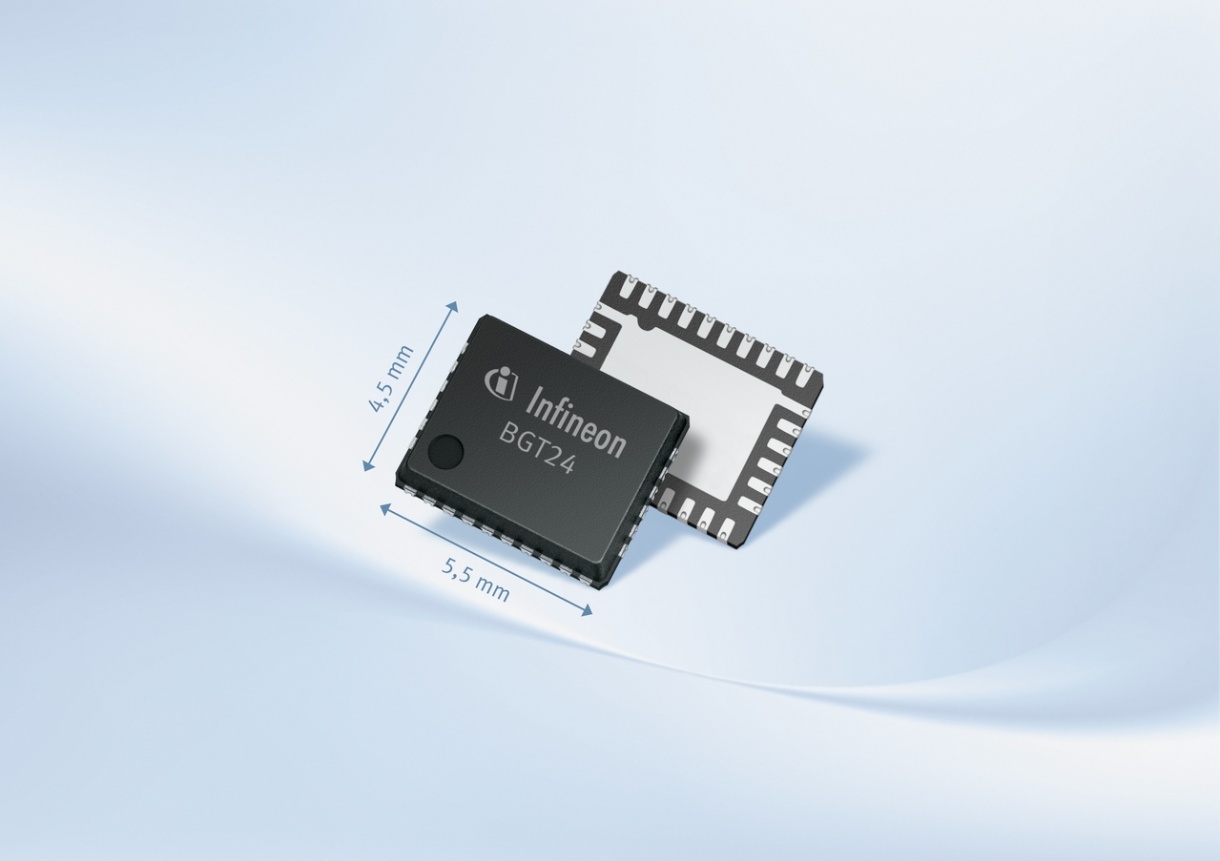

Silicon Germanium 24 GHz Transceiver MMIC
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy BGT24MTR11

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

BGT24MTR11 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

BGT24MTR11 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	BGT24MTR11
Manufacturer	Infineon
ChipWorker Part#	CW209466884
Documentation	Datasheet
Case/Package	VQFN-32-9
Gain	26.0 dB
	expand all
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Product Description

Description:
The BGT24MTR11 is a silicon germanium MMIC for signal generation and reception, operating from 24.00 to 26.00GHz. It is based on a 24GHz fundamental voltage controlled oscillator. Switchable frequency prescalers are included with output frequencies of 1.5GHz and 23kHz. The main RF output delivers upto 8dBm signal power to feed an antenna and an auxiliary LO output is available to provide LO signal to separate receiver components. An LO buffer amplifier is included to relax LO drive requirements and a LNA provides low noise figure. A RC polyphase filter (PPF) is used for LO quadrature phase generation of the homodyne quadrature downconversion mixer. Output power sensors as well as a temperature sensor are implemented for monitoring purposes. The device is controlled via SPI and is manufactured in a 0.18µm SiGe:C technology offering a cutoff frequency of 200GHz. The MMIC is packaged in a 32 pin leadless RoHs compliant VQFN package.
Summary of Features:
24GHz ISM band transceiver MMIC
Fully integrated low phase noise VCO
Switchable prescaler with 1.5GHz and 23kHz output
On chip power and temperature sensors
Gilbert based homodyne quadrature receiver
Single ended RF and LO terminal
Low noise figure NFSSB: 12 dB
High conversion gain: 26 dB
High 1 dB input compression point: -12 dBm
Single supply voltage 3.3 V
Low power consumption 500 mW
200GHz bipolar SiGe:C technology b7hf200
Fully ESD protected device
VQFN-32-9 leadless plastic package incl. LTI feature
Pb-free (RoHS compliant) package
