APT1211S - Panasonic

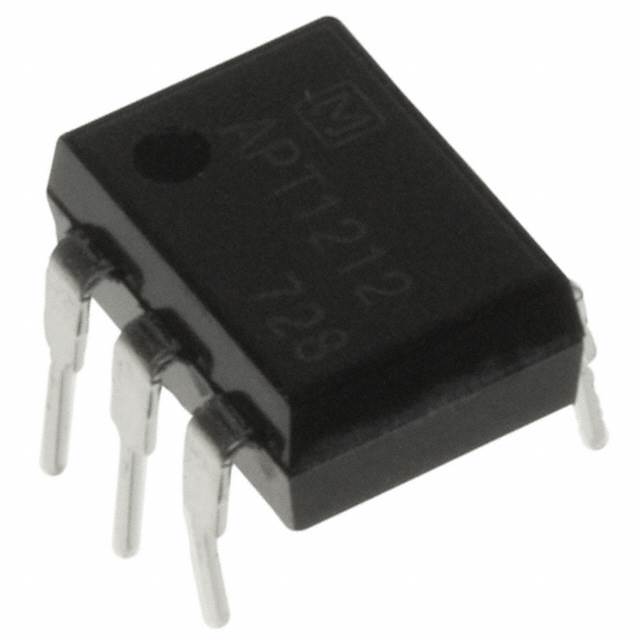

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

APT1211S
Manufacturer

Panasonic
ChipWorker Part#

CW42584387
Category

Optocoupler, Optoisolator
Package

SOP-4
Description

Optocoupler Triac AC-OUT 1CH 600V 4Pin SOP Tube
Documentation

Datasheet

APT1211S Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

APT1211S Specifications

Attribute	Attribute Value

Part Number	APT1211S
Manufacturer	Panasonic
ChipWorker Part#	CW42584387
Category	Optocoupler, Optoisolator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOP-4
Supply Voltage (DC)	600 V
Output Voltage	600 V
Output Current	0.05 A
Contacts Type	SPST-NO
Number of Channels	1 Channel
Load Current	50.0 mA
Forward Voltage	1.21 V
Input Current	20.0 mA
Power Dissipation	350 mW
Isolation Voltage	3750 Vrms
Holding Current	3.5 mA
Forward Current	50 mA
Input Voltage (Max)	1.3 V
Output Voltage (Max)	420 VAC
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.3 V
Forward Current (Max)	50 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	350 mW
	expand all
Size-Length	4.3 mm
Size-Width	4.4 mm
Size-Height	2 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8541408000
ECCN Code	EAR99

Product Description

Optoisolator Triac Output 3750Vrms 1 Channel 4-SOP
