APT60D120BG - Microsemi

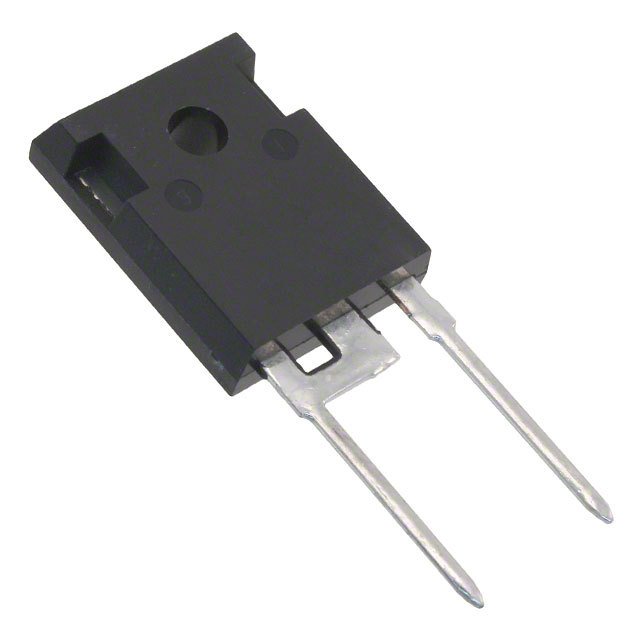

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

APT60D120BG
Manufacturer

Microsemi
ChipWorker Part#

CW19472866
Category

TVS Diode
Package

TO-247-2
Description

Rectifier Diode, 1 Phase, 1Element, 60A, 1200V V(RRM), Silicon, TO-247, ROHS COMPLIANT, TO-247, 2Pin
Documentation

Datasheet

APT60D120BG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

APT60D120BG Specifications

Attribute	Attribute Value

Part Number	APT60D120BG
Manufacturer	Microsemi
ChipWorker Part#	CW19472866
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-247-2
Voltage Rating (DC)	1.20 kV
Current Rating	60.0 A
Output Current	≤60.0 A
Forward Voltage	2.5V @60A
Polarity	Standard
Thermal Resistance	0.31℃/W (RθJC)
Reverse recovery time	400 ns
Forward Current	60000 mA
Maximum Forward Voltage (Max)	2.5V @60A
Forward Current (Max)	60 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
