AS5600-ASOM - AMS

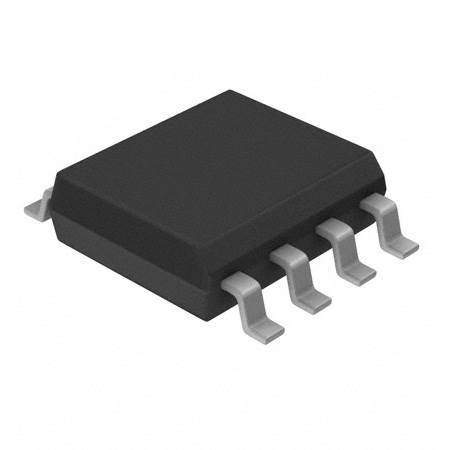

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AS5600-ASOM
Manufacturer

AMS
ChipWorker Part#

CW263944
Package

SOIC-8
Description

Rotary Position Sensor 5.5V/3.6V 8Pin SOIC T/R
Documentation

Datasheet

AS5600-ASOM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

AS5600-ASOM Specifications

Attribute	Attribute Value

Part Number	AS5600-ASOM
Manufacturer	AMS
ChipWorker Part#	CW263944
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	0.0500 W
Supply Current	6.5 mA
Power Dissipation	50 mW
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3.3V, 5V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Hall Effect Sensor Angle External Magnet, Not Included Gull Wing
