RHEF1500 - Littelfuse

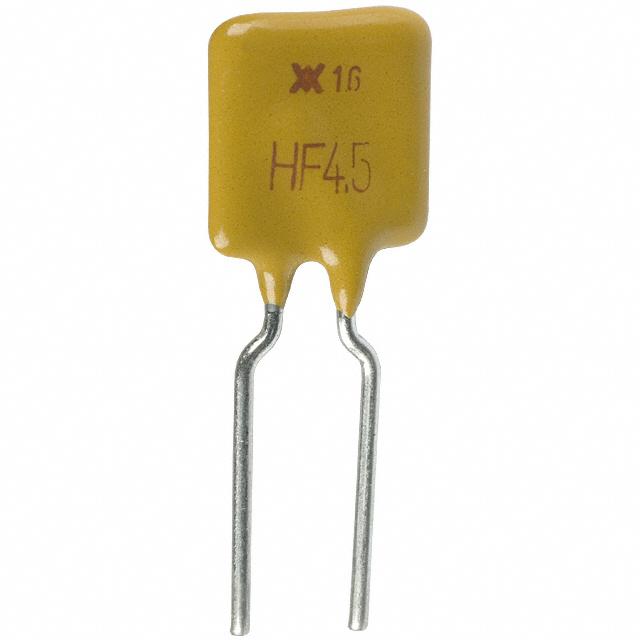

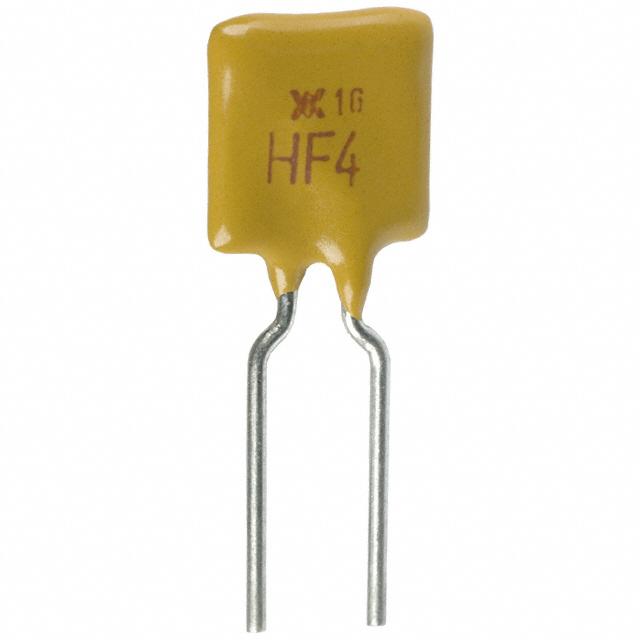

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

RHEF1500
Manufacturer

Littelfuse
ChipWorker Part#

CW53141157
Category

Fuse
Package

-
Description

PTC Resettable Fuse 15A(hold) 28A(trip) 16VDC 100A 7W 20s 0.0032Ω Radial 23.5 X 3.6 X 28.7mm Bag
Documentation

Datasheet

RHEF1500 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

RHEF1500 Specifications

Attribute	Attribute Value

Part Number	RHEF1500
Manufacturer	Littelfuse
ChipWorker Part#	CW53141157
Category	Fuse
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	-
Voltage Rating (DC)	16.0 V
Operating Voltage	16 VDC
Time to Trip	20 s
Power Dissipation	7 W
Holding Current	15 A
Trip Current	28 A
Current Rating (Max)	100 A
Holding Current (Max)	15 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	16 VDC
Voltage Rating	16 VDC
	expand all
Size-Height	28.7 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Polymeric PTC Resettable Fuse 16V 15A Ih Through Hole Radial, Disc
