RHEF400 ,Thermistor - TE Connectivity

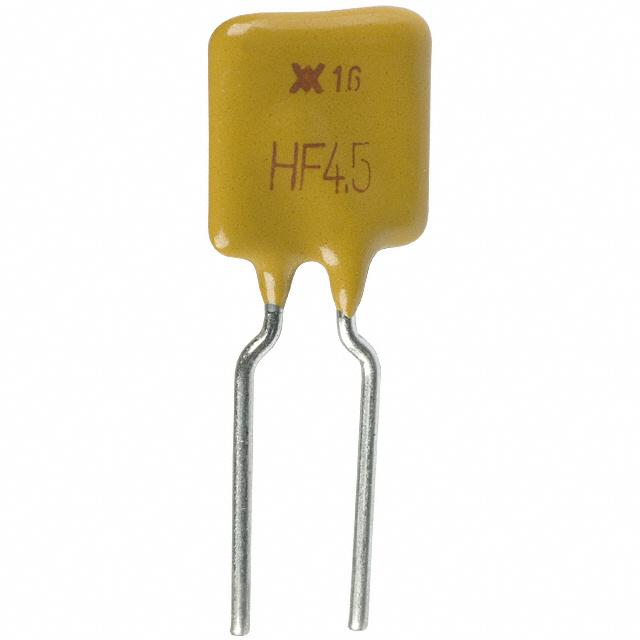

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

43 points

Part No

RHEF400
Manufacturer

TE Connectivity
ChipWorker Part#

CW69711430
Category

Thermistor
Package

Radial, Disc
Description

PTC Resettable Fuse 4A(hold) 7A(trip) 16V 3.3W 5s 0.024Ω Radial 10 X 3 X 15mm Bulk
Documentation

Datasheet
Ships from

Moscow
Наличие

38526 pcs In Stock
Estimated Price

$ 2.61

Buy RHEF400

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

RHEF400 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

RHEF400 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	RHEF400
Manufacturer	TE Connectivity
ChipWorker Part#	CW69711430
Category	Thermistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, Disc
Voltage Rating (DC)	16.0 V
Operating Voltage	16 VDC
Time to Trip	5 s
Current Rating	100 A
Power Dissipation	3.3 W
Part Family	RHEF
Resistance	0.044 Ω
Holding Current	4 A
Trip Current	7.5 A
DC Resistance (DCR)	0.044 Ω
Current Rating (Max)	100 A
Holding Current (Max)	4 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	16 V
Voltage Rating	16 VDC
	expand all
Size-Length	10 mm
Size-Width	11.4 mm
Size-Height	15 mm
Size-Thickness	3 mm
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
HTS Code	8533210090
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

Tyco Electronics" PolySwitch™ radial-leaded products represent the most comprehensive and complete set of PPTC products available in the industry today.
**Benefits:**
* Many Product Choices Give Engineers More Design Flexibility
* Compatible with High-Volume Electronics Assembly
* Assists in Meeting Regulatory Requirements
* High Voltage Ratings Allow Use in New Applications
**Features:**
* For Flatter Derating and Operating Temperatures Up to 125°C
* Broadest Range of Radial-Leaded Resettable Devices Available in the Industry
* Current Ratings from 50 mA to 15 A
* Voltage Ratings from 6 VAC to 265 VAC Line Voltage Applications
* Agency Recognition: UL, CSA, TÜV
* Fast Time-to-Trip
* Low Resistance
**
Applications:*
* Satellite Video Receivers
* Industrial Controls
* Transformers
* Computer Motherboards
* Modems
* USB Hub, Ports and Peripherals
* IEEE1394 Ports
* CD-ROMs
* Game Machines
* Battery Packs
* Phones
* Fax Machines
* Analog and Digital Line Cards
* Printers
