AUIRS2301S - Infineon

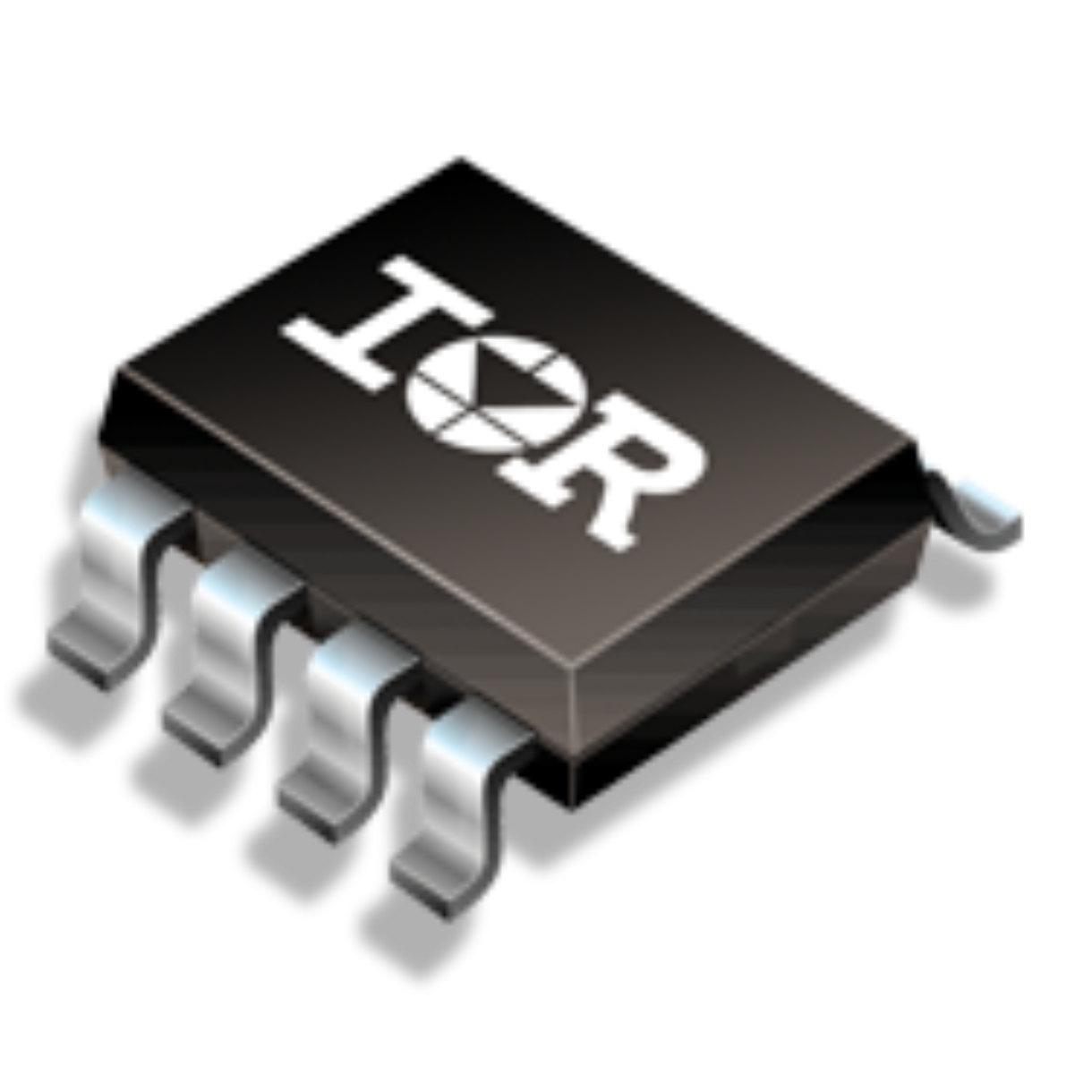

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

AUIRS2301S
Manufacturer

Infineon
ChipWorker Part#

CW54867037
Category

FET Driver
RoHS

Lead free / RoHS Compliant
Description

MOSFET DRVR 600V 0.35A 2Out Hi/Lo Side Non-Inv 8Pin SOIC Tube/Bulk
Documentation

Datasheet

AUIRS2301S Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

AUIRS2301S Specifications

Attribute	Attribute Value

Part Number	AUIRS2301S
Manufacturer	Infineon
ChipWorker Part#	CW54867037
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Rise/Fall Time	130ns, 50ns
Number of Outputs	2 Output
Output Current	200 mA
Power Dissipation	625 mW
Rise Time	220 ns
Fall Time	80 ns
Fall Time (Max)	80 ns
Fall Time (Max)	220 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	625 mW
Supply Voltage	5V ~ 20V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

AUIRS2301 Series Dual Channel 20 V 0.2 A High / Low Side Driver - SOIC-8
