BC369 - ON Semiconductor

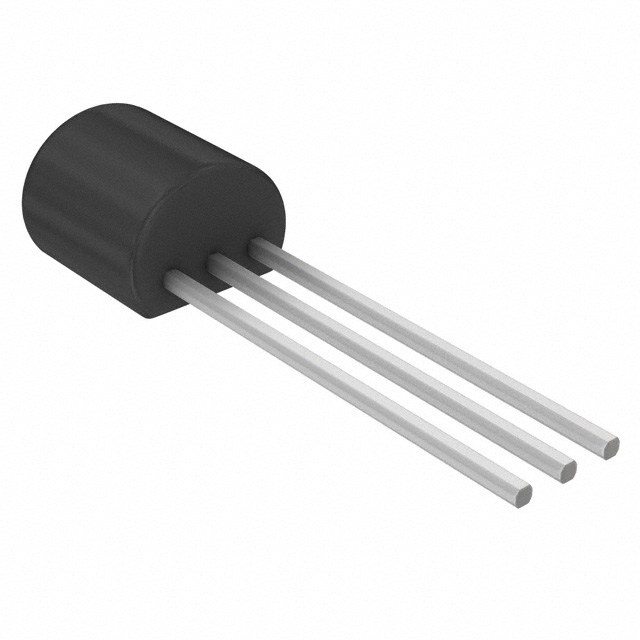

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BC369
Manufacturer

ON Semiconductor
ChipWorker Part#

CW152006817
Category

BJT Transistor, BJT
Package

TO-226-3
Description

Trans GP BJT PNP 20V 1A 3Pin TO-92 Bulk
Documentation

Datasheet

BC369 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BC369 Specifications

Attribute	Attribute Value

Part Number	BC369
Manufacturer	ON Semiconductor
ChipWorker Part#	CW152006817
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Voltage Rating (DC)	-20.0 V
Current Rating	-1.00 A
Breakdown Voltage (Collector to Emitter)	20 V
hFE Min	85 @500mA, 1V
Input Power (Max)	625 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	625 mW
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Box
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

Bipolar (BJT) Transistor PNP 20 V 1 A 65MHz 625 mW Through Hole TO-92 (TO-226)
