BC547BBU ,BJT Transistor, BJT - Fairchild

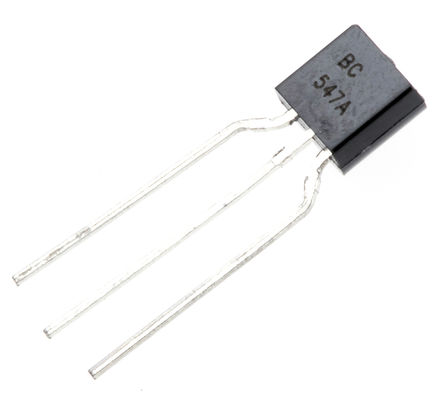

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

109 points

Part No

BC547BBU
Manufacturer

Fairchild
ChipWorker Part#

CW12750726
Category

BJT Transistor, BJT
Package

TO-92-3
Description

BC547 Series NPN 0.5W(1/2W) 45V Through Hole Epitaxial Silicon Transistor - TO-92-3
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1

Buy BC547BBU

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

BC547BBU Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

BC547BBU Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	BC547BBU
Manufacturer	Fairchild
ChipWorker Part#	CW12750726
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Frequency	300 MHz
Voltage Rating (DC)	45.0 V
Current Rating	100 mA
Power Rating	500 mW
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	500 mW
Breakdown Voltage (Collector to Emitter)	45 V
Continuous Collector Current	0.1A
hFE Min	200 @2mA, 5V
Input Power (Max)	500 mW
DC Current Gain (hFE)	200
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	500 mW
	expand all
Size-Length	4.58 mm
Size-Width	3.86 mm
Size-Height	5.33 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The BC547BBU is a NPN epitaxial silicon Bipolar Transistor suitable for switching and amplifier applications.
Complement to BC557
