BC547BRL1G - ON Semiconductor

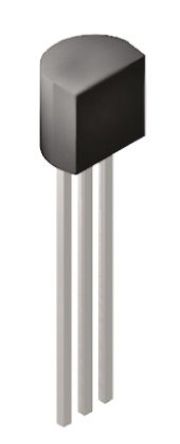

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BC547BRL1G
Manufacturer

ON Semiconductor
ChipWorker Part#

CW93757814
Category

BJT Transistor, BJT
Package

TO-92-3
Description

TO-92 NPN 45V 0.1A
Documentation

Datasheet

BC547BRL1G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

BC547BRL1G Specifications

Attribute	Attribute Value

Part Number	BC547BRL1G
Manufacturer	ON Semiconductor
ChipWorker Part#	CW93757814
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Frequency	300 MHz
Voltage Rating (DC)	45.0 V
Current Rating	100 mA
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	1.5 W
Gain Bandwidth Product	300 MHz
Breakdown Voltage (Collector to Emitter)	45 V
Continuous Collector Current	0.1A
hFE Min	200 @2mA, 5V
Input Power (Max)	625 mW
DC Current Gain (hFE)	200
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	625 mW
	expand all
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The BC547BRL1G is a NPN bipolar Amplifier Transistor designed for use in linear and switching applications. The device is housed in the package which is designed for medium power applications.
