BD240B - Fairchild

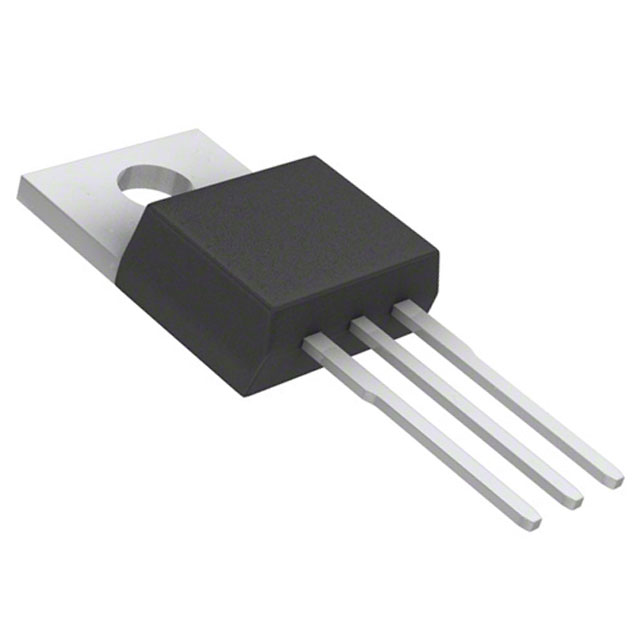

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BD240B
Manufacturer

Fairchild
ChipWorker Part#

CW126841126
Category

BJT Transistor, BJT
Package

TO-220-3
Description

Trans GP BJT PNP 80V 2A 3Pin(3+Tab) TO-220AB Bulk
Documentation

Datasheet

BD240B Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BD240B Specifications

Attribute	Attribute Value

Part Number	BD240B
Manufacturer	Fairchild
ChipWorker Part#	CW126841126
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	-80.0 V
Current Rating	-2.00 A
Power Dissipation	30 W
Breakdown Voltage (Collector to Emitter)	80 V
hFE Min	15 @1A, 4V
Input Power (Max)	30 W
Power Dissipation (Max)	30000 mW
	expand all
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Bipolar (BJT) Transistor PNP 80 V 2 A - 30 W Through Hole TO-220-3
