BFP780 ,BJT Transistor, BJT - Infineon

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

17 points

Part No

BFP780
Manufacturer

Infineon
ChipWorker Part#

CW429254071
Category

BJT Transistor, BJT
Package

SOT-343
Description

Drive Amplifier
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

Price on Request

Buy BFP780

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

BFP780 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

BFP780 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	BFP780
Manufacturer	Infineon
ChipWorker Part#	CW429254071
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-343
Frequency	1.8 GHz
	expand all
Size-Height	0.9 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Similar & Replacement Parts

Product Description

Description:

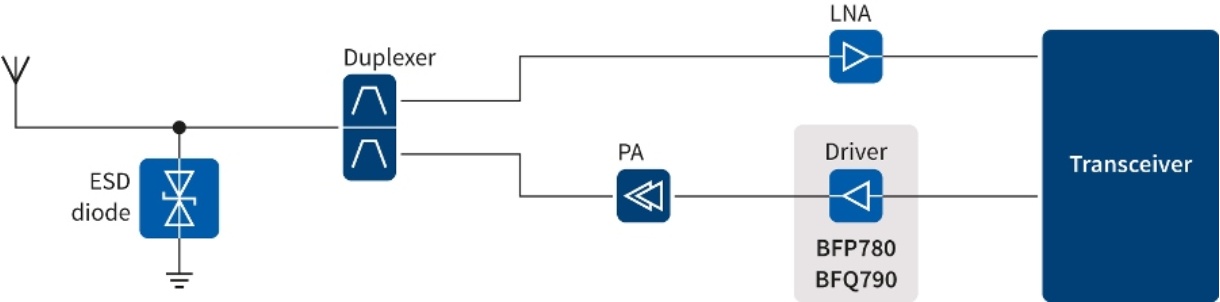

The BFP780 is a single stage driver amplifier with high linearity and high power gain. Its output 1dB compression point is 23 dBm. The chip is housed in a halogen-free industry standard package SOT343. The proper die attach with good thermal contact is 100% tested and verified. Same as BFQ790, the device is based on Infineon"s reliable and cost effective NPN SiGe technology running in high volume. The collector design allows safe operation with 5 V supply voltage.
Summary of Features:
High 3rd order intercept point OIP3 of 34 dBm @ 5 V, 90 mA
High compression point OP1dB of 23 dBm @ 5 V, 90 mA corresponding to 45 % collector efficiency
Low minimum noise figure of 1.2 dB @ 900 MHz, 5 V, 30 mA
Single stage, intended for external matching
High maximum RF input power PRFinmax of 20 dBm
Safe operation with single 5 V supply
100% test of proper die attach for reproducible thermal contact
100% DC and RF tested
Easy to use large signal compact (VBIC) model in development
Cost effective NPN SiGe technology running in very high volume
Easy to use Pb-free (RoHS compliant) and halogen-free industry standard package SOT343, low RTHJS of 95 K/W
