BLM15HD601SN1D ,Ferrite - muRata

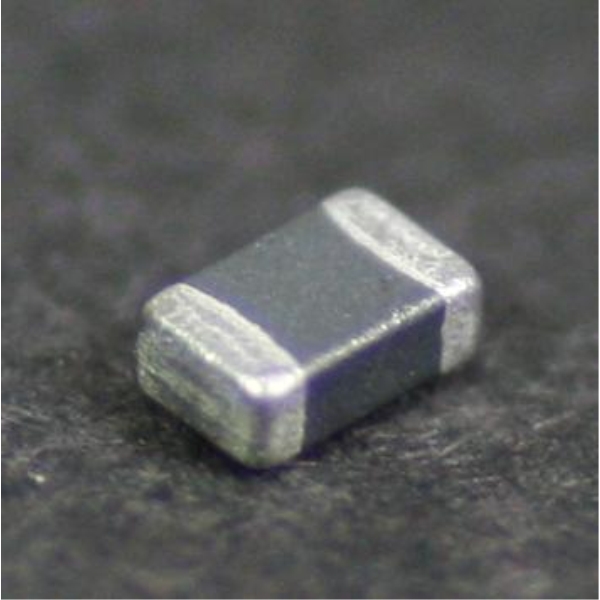

The pictures are for reference only, and the specific specifications can be found in the product manual.
Popularity Score
223 points
-
Part NoBLM15HD601SN1D
-
ManufacturermuRata
-
ChipWorker Part#CW413628
-
CategoryFerrite
-
Package0402
-
DescriptionMURATA BLM15HD601SN1D Ferrite Bead, 600Ω, 0402 [1005 Metric], BLM15H Series, 300mA, 0.85Ω, ± 25%
-
DocumentationDatasheet
-
Ships fromMoscow
-
Наличие460 pcs In Stock
-
Estimated PricePrice on Request
Payment Methods and Delivery
{{ estimate }}
Buy BLM15HD601SN1D
Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.
Real stock check
Best price from distributors
Engineer support
BLM15HD601SN1D Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}xx
{{ low_stock_text }}
|
1 |
{{weeks_text}}
|
{{ formatQuantity(priceList.quantity) }}
{{currencySymbol}}{{ ToEffectiveNum(toDisplay(priceList.price, activeCurrency)) }}
{{viewMore}}
|
{{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
{{ low_stock_text }}
|
1 | {{weeks_text}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
|
Chipworker
|
{{noList.partNo}}
{{noList.mfr}}
|
{{stockAvailability}}
{{ search_item }}
|
{{moq}} | 1 | 6 - 8 {{delivery_date}} | {{price_on_request_text}} | {{currencySymbol}}{{UpToFourDecimals(toDisplay(priceCalc, activeCurrency),1)}} |
|
|||||||
{{ apiText }}{{ apiTime }}(UTC+8)
Update Data
Chipworker Certification
11+ years sourcing experience
1000+ russia customers
ISO certified supplier
Support small MOQ
*Photos of Our Actual 800 m² Warehouse
BLM15HD601SN1D Specifications
Consulting Engineer >>| Attribute | Attribute Value | |
|---|---|---|
| Part Number | BLM15HD601SN1D | |
| Manufacturer | muRata | |
| ChipWorker Part# | CW413628 | |
| Category | Ferrite | |
| Documentation | Datasheet | |
| Mounting Style | Surface Mount | |
| Number of Pins | 2 Pin | |
| Case/Package (SI) | 1005 | |
| Case/Package | 0402 | |
| Frequency | 100 MHz | |
| Current Rating | 300 mA | |
| Number of Circuits | 1 Circuit | |
| Resistance | 600 Ω | |
| Shielding | No | |
| Impedance | 600 Ω | |
| Test Frequency | 100 MHz | |
| DC Resistance (DCR) | ≤850.0 mΩ | |
| Current Rating (Max) | 300 mA | |
| Current Rating (DC) | 300 mA | |
| Operating Temperature (Max) | 125 ℃ | |
| Operating Temperature (Min) | -55 ℃ | |
| Accuracy | ±25 % | |
| Resistance (DC Max) | 0.85 Ω | |
| expand all | ||
| Size-Length | 1 mm | |
| Size-Width | 0.5 mm | |
| Size-Height | 0.5 mm | |
| Material | Ferrite | |
| Operating Temperature | -55℃ ~ 125℃ | |
| Product Lifecycle Status | Active | |
| Packaging | Tape & Reel (TR) | |
| Minimum Packing Quantity | 10000 | |
| RoHS | RoHS Compliant | |
| Lead-Free Status | Lead Free | |
| REACH SVHC Compliance | No SVHC | |
| REACH SVHC Compliance Edition | 2015/12/17 | |
| ECCN Code | EAR99 | |
| HK STC License | NLR |
Similar & Replacement Parts
Similar products
Product Description
- The Murata BLM15HD series are EMIFIL chip ferrite beads for suppressing high frequency noise in GHz band high speed signal line applications. These chip ferrite beads are designed for reducing the possibility of resonance to provide undistorted signal waveform. EMIFIL chip ferrite beads do not require connection to ground so they are effectively used in circuits without stable ground lines. The nickel barrier structure of the external electrodes provides excellent solder heat resistance. BLM15HD are suitable for noise suppression in 1GHz or higher frequency. Typical applications include EMI suppression for Note PC and DSC, noise suppression for data line and prevention of erroneous operation caused by local oscillation signal in mobile phones.
- EIA 0402 standard chip size
- Miniaturized ferrite beads
- Effective at low impedance line
- Available in selective impedance range values at 100MHz
- Operating temperature range -55°C to 125°C
