BPW34FS - Osram Opto

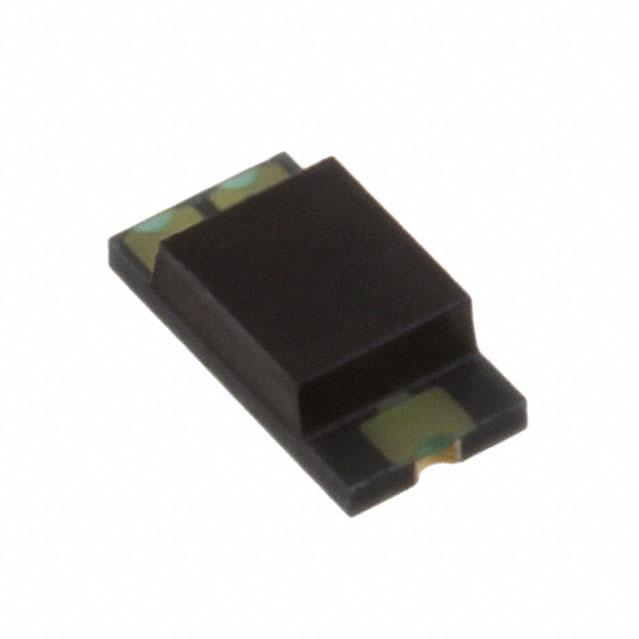

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BPW34FS
Manufacturer

Osram Opto
ChipWorker Part#

CW44571096
Category

Photodiode
Package

SMD-2
Description

Photodiode, 60°, 2nA, 950nm, SMD-2
Documentation

Datasheet

BPW34FS Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BPW34FS Specifications

Attribute	Attribute Value

Part Number	BPW34FS
Manufacturer	Osram Opto
ChipWorker Part#	CW44571096
Category	Photodiode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMD-2
Rise/Fall Time	20 ns
Number of Positions	2 Position
Wavelength	950 nm
Viewing Angle	120°
Peak Wavelength	850 nm
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC

Product Description

The BPW34FS is a Silicon PIN Photodiode with daylight blocking filter. It has a radiant sensitive area of 2.65x2.65mm² and short switching time. It is suitable for reflow soldering. It is suitable for applications from 780 to 1100nm.
