BSP324 ,MOSFET, MOSFET Transistor - Infineon

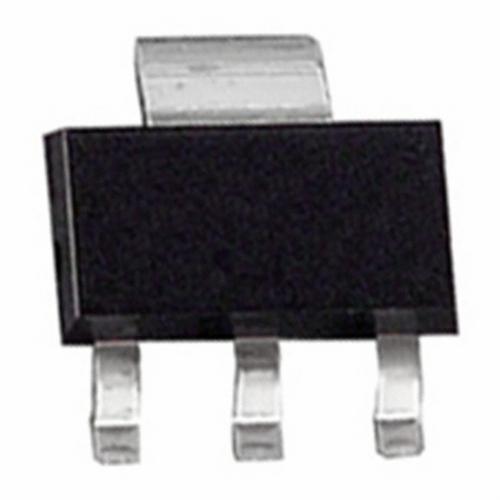

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

83 points

Part No

BSP324
Manufacturer

Infineon
ChipWorker Part#

CW96127200
Category

MOSFET, MOSFET Transistor
Package

SOT-223
Description

INFINEON BSP324 MOSFET Transistor, N Channel, 170mA, 400V, 13.6Ω, 10V, 1.9V
Documentation

Datasheet
Ships from

Moscow
Наличие

300 pcs In Stock
Estimated Price

$ 0.28

Buy BSP324

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

BSP324 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

BSP324 Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	BSP324
Manufacturer	Infineon
ChipWorker Part#	CW96127200
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-223
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	13.6 Ω
Polarity	N-Channel
Power Dissipation	1.7 W
Threshold Voltage	1.9 V
Drain to Source Voltage (Vds)	400 V
Continuous Drain Current (Ids)	170 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	150 ℃
	expand all
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Similar & Replacement Parts

Similar products

Product Description

The BSP324 is a N-channel Small Signal MOSFET qualified according to AEC-Q101.
Enhancement-mode
Avalanche rated
Logic level
dV/dt Rated
