BSP89 - Infineon

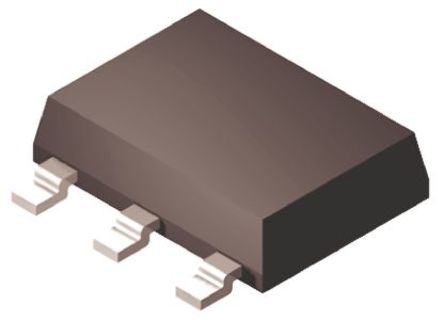

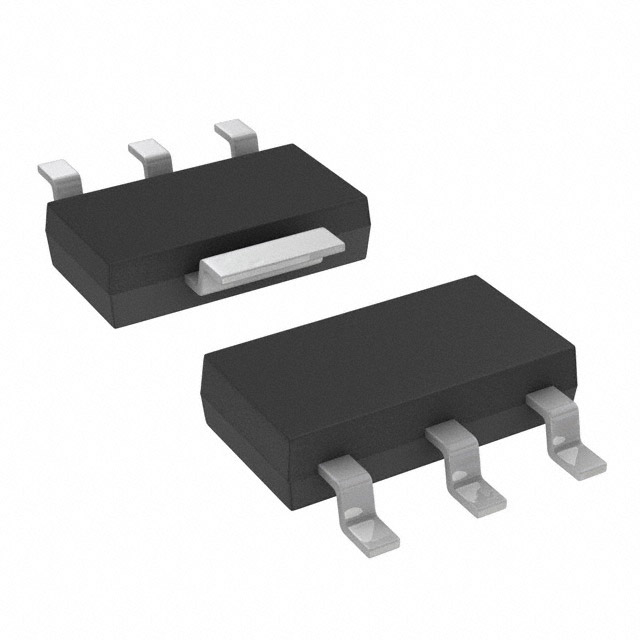

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSP89
Manufacturer

Infineon
ChipWorker Part#

CW67321959
Category

MOSFET, MOSFET Transistor
Package

SOT-223
Description

Trans MOSFET N-CH 240V 0.35A Automotive 4Pin(3+Tab) SOT-223
Documentation

Datasheet

BSP89 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

BSP89 Specifications

Attribute	Attribute Value

Part Number	BSP89
Manufacturer	Infineon
ChipWorker Part#	CW67321959
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-223
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	4.2 Ω
Polarity	N-Channel
Power Dissipation	1.7 W
Threshold Voltage	1.4 V
Drain to Source Voltage (Vds)	240 V
Continuous Drain Current (Ids)	360 mA
Rise Time	3.5 ns
Input Capacitance (Ciss)	80pF @25V(Vds)
Fall Time	3.5 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	150 ℃
Power Dissipation (Max)	1800 mW
	expand all
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

Summary of Features:
Enhancement mode
Avalanche rated
Pb-free lead plating; RoHS compliant
Qualified according to AEC Q101
