BSR802NL6327HTSA1 - Infineon

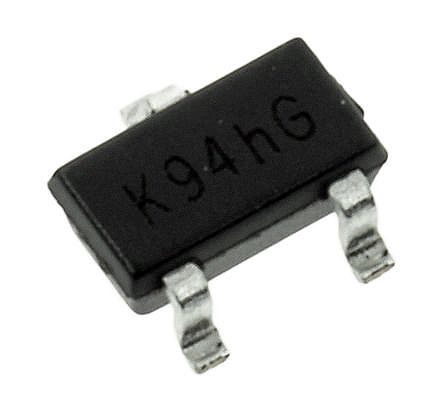

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BSR802NL6327HTSA1
Manufacturer

Infineon
ChipWorker Part#

CW9238963
Category

MOSFET, MOSFET Transistor
Package

SOT-23-3
Description

SC-59 N-CH 20V 3.7A
Documentation

Datasheet

BSR802NL6327HTSA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BSR802NL6327HTSA1 Specifications

Attribute	Attribute Value

Part Number	BSR802NL6327HTSA1
Manufacturer	Infineon
ChipWorker Part#	CW9238963
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Power Rating	0.5 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.017 Ω
Polarity	N-Channel
Power Dissipation	500 mW
Threshold Voltage	550 mV
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	3.7A
Rise Time	18 ns
Input Capacitance (Ciss)	1013pF @10V(Vds)
Fall Time	4.1 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	expand all
Size-Length	3 mm
Size-Width	1.1 mm
Size-Height	1.6 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The BSR802N L6327 is a N-channel Small Signal MOSFET qualified according to AEC-Q101 standard.
Enhancement-mode
Avalanche rated
Ultra logic level
Green device
