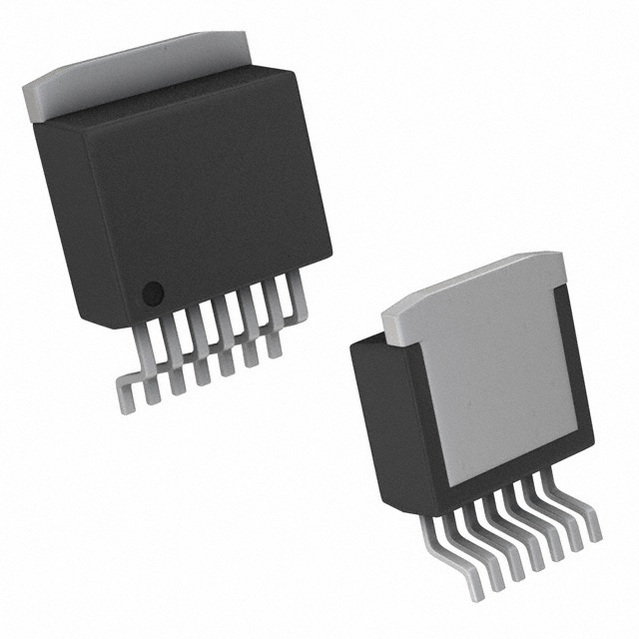

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

BTN7970B
Manufacturer

Infineon
ChipWorker Part#

CW73056296
Category

Motor Driver
Package

TO-263-7
Description

Half Bridge Based Peripheral Driver, 77A, MOS, PSSO7, GREEN, PLASTIC, TO-263, 7Pin
Documentation

Datasheet

BTN7970B Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

BTN7970B Specifications

Attribute	Attribute Value

Part Number	BTN7970B
Manufacturer	Infineon
ChipWorker Part#	CW73056296
Category	Motor Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	TO-263-7
Number of Outputs	1 Output
Output Current	70 A
Switching Frequency	25 kHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5.5V ~ 28V
	expand all
Size-Length	10 mm
Size-Width	9.25 mm
Size-Height	4.4 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
