CBC3225T4R7MR - Taiyo Yuden

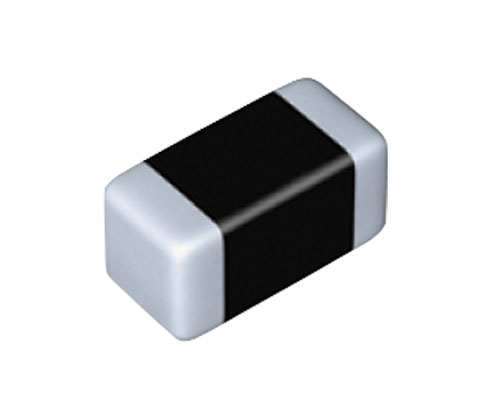

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CBC3225T4R7MR
Manufacturer

Taiyo Yuden
ChipWorker Part#

CW3832823
Category

Inductor
Package

1210
Description

1210 4.7uH ±20%
Documentation

Datasheet

CBC3225T4R7MR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CBC3225T4R7MR Specifications

Attribute	Attribute Value

Part Number	CBC3225T4R7MR
Manufacturer	Taiyo Yuden
ChipWorker Part#	CW3832823
Category	Inductor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	3225
Case/Package	1210
Current Rating	1.01 A
Capacitance Tolerance	±20 %
Halogen Free Status	Halogen Free
Inductance	4.7 µH
Self Resonant Frequency	70 MHz
Part Family	CB
Shielding	No
Inductance Tolerance	±20 %
Test Frequency	100 kHz
DC Resistance (DCR)	≤130 mΩ
Current Rating (DC)	1.01 A
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	0.1 Ω
	expand all
Size-Length	3.2 mm
Size-Width	2.5 mm
Size-Height	2.5 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	1000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8504500000
ECCN Code	EAR99

Product Description

4.7µH Unshielded Wirewound Inductor 1.01A 130mOhm Max 1210 (3225 Metric)
