CC2540F128RHAT ,RF Module - TI

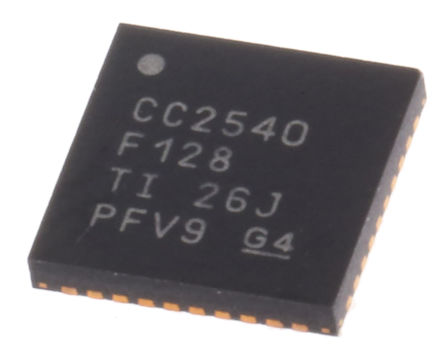

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

115 points

Part No

CC2540F128RHAT
Manufacturer

TI
ChipWorker Part#

CW11327445
Category

RF Module
Package

VQFN-40
Description

RF Transceiver IC, 2.402GHz to 2.48GHz, GFSK, 1Mbps, 24 dBm out, 2V to 3.6V, VQFN-40
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 1.17

Buy CC2540F128RHAT

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

CC2540F128RHAT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

CC2540F128RHAT Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	CC2540F128RHAT
Manufacturer	TI
ChipWorker Part#	CW11327445
Category	RF Module
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	VQFN-40
Frequency	2.4 GHz
Supply Voltage (DC)	2.00V (min)
Supply Current	0.0004 mA
Number of Positions	40 Position
Clock Speed	32.0 MHz
RAM Memory Size	8192 B
Data Rate	1.00 Mbps
FLASH Memory Size	131334144 B
Output Power	4 dBm
Number of UARTs	1 UART
Standby Current	400 nA
Antenna Connection	Differential
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	6 mm
Size-Width	6 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR

Similar & Replacement Parts

Similar products

Product Description

The CC2540F128RHAT is a SimpleLink Bluetooth Smart Wireless RF Transceiver with MCU and USB. The CC2540 is a low-power true system-on-chip (SoC) for Bluetooth low energy applications. It enables robust BLE master or slave nodes to be built with very low total bill-of-material costs. The CC2540 combines an excellent RF transceiver with an industry-standard enhanced 8051 MCU, in-system programmable flash memory, 8kB RAM and many other powerful supporting features and peripherals. The CC2540 is suitable for systems where very low power consumption is required. Very low-power sleep modes are available. Short transition times between operating modes further enable low power consumption. Combined with the Bluetooth low energy protocol stack from Texas Instruments, the CC2540F128 forms the market"s most flexible and single-mode Bluetooth low energy solution.
Bluetooth low energy technology compatible
Excellent link budget (up to 97dB), enabling long-range applications without external front end
Accurate digital received signal-strength indicator (RSSI)
Few external components
Reference design provided
Active mode RX down to 19.6mA
24mA Active mode TX (-6dBm)
235µA Power mode 1 (3µs wake-up)
0.9µA Power mode 2 (sleep timer on)
0.4µA Power mode 3 (external interrupts)
Microcontroller - high-performance and low-power 8051 microcontroller core
Microcontroller - in-system-programmable flash, 128 or 256kB
Microcontroller - 8kB SRAM
12-bit ADC with eight channels and configurable resolution
Integrated high-performance op-amp and ultralow-power comparator
General-purpose timers (one 16-bit, two 8-bit)
32kHz Sleep timer with capture
Two powerful USARTs with support for several serial protocols
Full-speed USB interface
IR generation circuitry

expand all
