CC430F5137IRGZ - TI

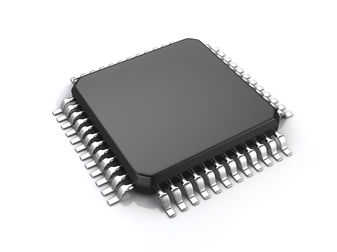

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CC430F5137IRGZ
Manufacturer

TI
ChipWorker Part#

CW36849270
Category

16-Bit Microcontroller IC
Package

VQFN-48
Description

16Bit Ultra-Low-Power MCU, 32KB Flash, 4KB RAM, CC1101 Radio, AES-128, 12Bit ADC, USCI 48-VQFN -40℃ to 85℃
Documentation

Datasheet

CC430F5137IRGZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CC430F5137IRGZ Specifications

Attribute	Attribute Value

Part Number	CC430F5137IRGZ
Manufacturer	TI
ChipWorker Part#	CW36849270
Category	16-Bit Microcontroller IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	VQFN-48
Frequency	300MHz ~ 348MHz, 389MHz ~ 464MHz, 779MHz ~ 928MHz
Supply Voltage (DC)	2.00V (min)
Number of Positions	48 Position
Clock Speed	20.0 MHz
RAM Memory Size	4 KB
Number of Bits	16 Bit
FLASH Memory Size	32768 B
Output Power	10 dBm
Number of UARTs	1 UART
Number of ADCs	6 ADC
Standby Current	1.00 µA
Antenna Connection	Differential
FRAM Memory Size	0 B
Number of Inputs and Outputs	30 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	7.15 mm
Size-Width	7.15 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	5A992.c
HK STC License	NLR

Product Description

The CC430F5137IRGZ is an ultralow-power microcontroller System-on-chip (SoC) with integrated RF transceiver cores consists of several devices featuring different sets of peripherals targeted for a wide range of applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features the powerful MSP430 16-bit RISC CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The CC430 family provides a tight integration between the microcontroller core, its peripherals, software and the RF transceiver, making these true SoC solutions easy to use as well as improving performance. The microcontroller SoC configurations that combine the excellent performance of the state-of-the-art CC1101 sub-1GHz RF transceiver with the MSP430 CPUXV2, up to 32kB of in-system programmable flash memory, up to 4kB of RAM, two 16-bit timers, a high performance 12-bit ADC.
Wake up from standby mode in less than 6µs
Flexible power-management system with SVS and brownout
Unified clock system with FLL
Hardware real-time clock (RTC)
128-bit AES security encryption and decryption coprocessor
32-bit hardware multiplier
Three-channel internal DMA
Serial onboard programming
No external programming voltage needed
Embedded emulation module (EEM)
Digital RSSI output
General-purpose timers
ESD sensitive device, take proper precaution while handling the device.
