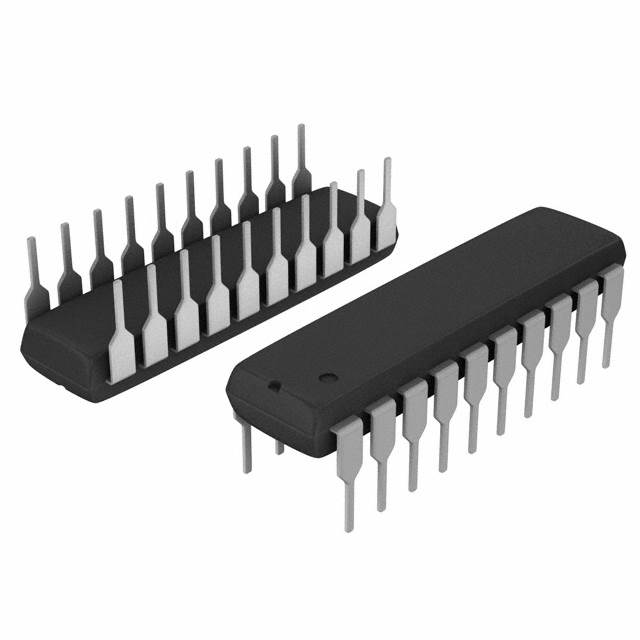

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

139 points

Part No

CD74HC540E
Manufacturer

TI
ChipWorker Part#

CW9015844
Category

Logic Control, Logic Gate IC
Package

PDIP-20
Description

Buffer/Line Driver 8CH Inverting 3-ST CMOS 20Pin PDIP Tube
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.98

Buy CD74HC540E

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

CD74HC540E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

CD74HC540E Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	CD74HC540E
Manufacturer	TI
ChipWorker Part#	CW9015844
Category	Logic Control, Logic Gate IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	20 Pin
Case/Package	PDIP-20
Supply Voltage (DC)	5.00 V, 6.00 V (max)
Number of Outputs	8 Output
Number of Circuits	1 Circuit
Number of Channels	8 Channel
Number of Positions	20 Position
Number of Bits	8 Bit
Number of Inputs	8 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	expand all
Size-Length	26.92 mm
Size-Width	6.6 mm
Size-Height	4.57 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

The CD74HC540E is an inverting octal Buffer/Line Driver with 3-state outputs and the capability to drive 15 LSTTL loads. The output enables (OE1\\) and (OE2\\) control the 3-state outputs. If either OE1\ or OE2\ is HIGH the outputs will be in the high impedance state. For data output OE1\ and OE2\ both must be LOW.
Buffered inputs
Bus line driving capability
Balanced propagation delay and transition times
Significant power reduction compared to LSTTL logic ICs
High noise immunity - NIL = 30%, NIH = 30% of VCC at VCC = 5V
Typical propagation delay = 9ns at VCC = 5V, CL = 15pF, TA = 25°C
Standard outputs - 10 LSTTL loads
Bus driver outputs - 15 LSTTL loads
