CD74HCT4060E - TI

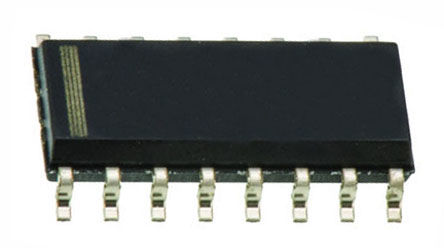

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CD74HCT4060E
Manufacturer

TI
ChipWorker Part#

CW25922541
Category

Logic Controller, Logic IC
Package

PDIP-16
Description

TEXAS INSTRUMENTS CD74HCT4060E Binary Counter, HCT Family, 30MHz, 4.5V to 5.5V, DIP-16
Documentation

Datasheet

CD74HCT4060E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CD74HCT4060E Specifications

Attribute	Attribute Value

Part Number	CD74HCT4060E
Manufacturer	TI
ChipWorker Part#	CW25922541
Category	Logic Controller, Logic IC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	PDIP-16
Supply Voltage (DC)	4.50V ~ 5.50V
Number of Outputs	10 Output
Clock Speed	30 MHz
Number of Bits	14 Bit
Voltage Nodes	5.00 V
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

Easily switch into other logical states by implementing this binary CD74HCT4060E counter shift register manufactured by Texas Instruments. This counter shift register has a minimum operating temperature of -55 °C and a maximum of 125 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
