CDCLVC1104PW - TI

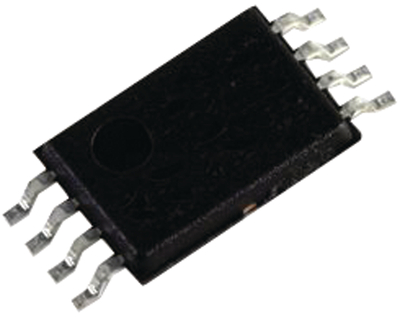

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CDCLVC1104PW
Manufacturer

TI
ChipWorker Part#

CW7729742
Category

Clock Buffer, Driver, PLL IC
Package

TSSOP-8
Description

Clock Fanout Buffer 4Out 1IN 1:4 8Pin TSSOP Tube
Documentation

Datasheet

CDCLVC1104PW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CDCLVC1104PW Specifications

Attribute	Attribute Value

Part Number	CDCLVC1104PW
Manufacturer	TI
ChipWorker Part#	CW7729742
Category	Clock Buffer, Driver, PLL IC
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Frequency	250 MHz
Supply Voltage (DC)	2.30V ~ 3.60V
Number of Outputs	4 Output
Supply Current	6.00 mA
Number of Circuits	1 Circuit
Number of Positions	8 Position
Output Current Drive	-1.00 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.3V ~ 3.6V
Supply Voltage (Max)	2.7 V
Supply Voltage (Min)	2.3 V
	expand all
Size-Length	4.5 mm
Size-Width	3.1 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The CDCLVC1104PW is a modular high-performance low-skew general-purpose Clock Buffer designed with a modular approach in mind. It is intended to round up TI"s series of LVCMOS clock generators. Seven different fan-out variations, 1:2 to 1:12, are available. The device is pin compatible to each other for easy handling. The CDCLVC11xx supports an asynchronous output enable control (1G) which switches the outputs into a low state when 1G is low.
<50ps Very low pin-to-pin skew
<100fs Very low additive jitter
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
