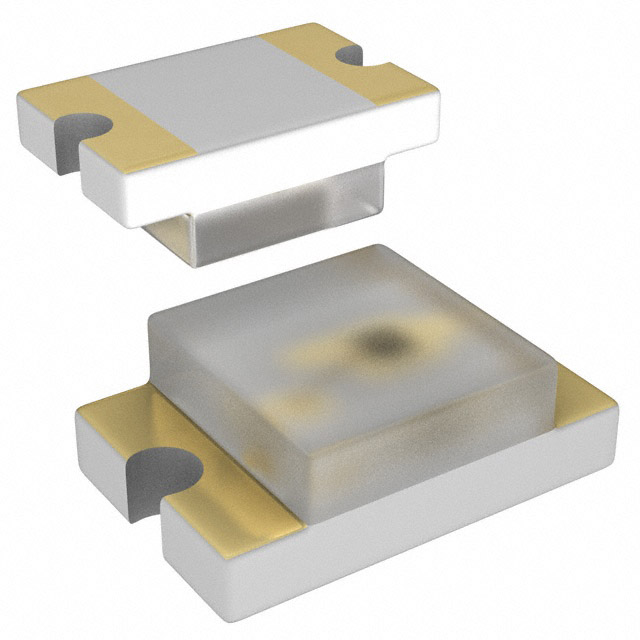

QTLP630C4TR - Everlight Electronics

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

QTLP630C4TR
Manufacturer

Everlight Electronics
ChipWorker Part#

CW49373430
Category

Based LED
Package

0805
Description

Green 2.2 x 1.45 x 1.2mm Case 0805 140° Water Clear 10mcd 2.1V LED Lamp SMT
Documentation

Datasheet

QTLP630C4TR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

QTLP630C4TR Specifications

Attribute	Attribute Value

Part Number	QTLP630C4TR
Manufacturer	Everlight Electronics
ChipWorker Part#	CW49373430
Category	Based LED
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Forward Voltage	2.1 V
Wavelength	570 nm
Viewing Angle	140°
Peak Wavelength	565 nm
Power Dissipation	84 mW
Test Current	20 mA
Maximum Forward Voltage (Max)	2.8 V
Forward Current (Max)	30 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	84 mW
	expand all
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	1.20 mm
Color	Green
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Green 570nm LED Indication - Discrete 2.1V 0805 (2012 Metric)
