CHL8510 - Infineon

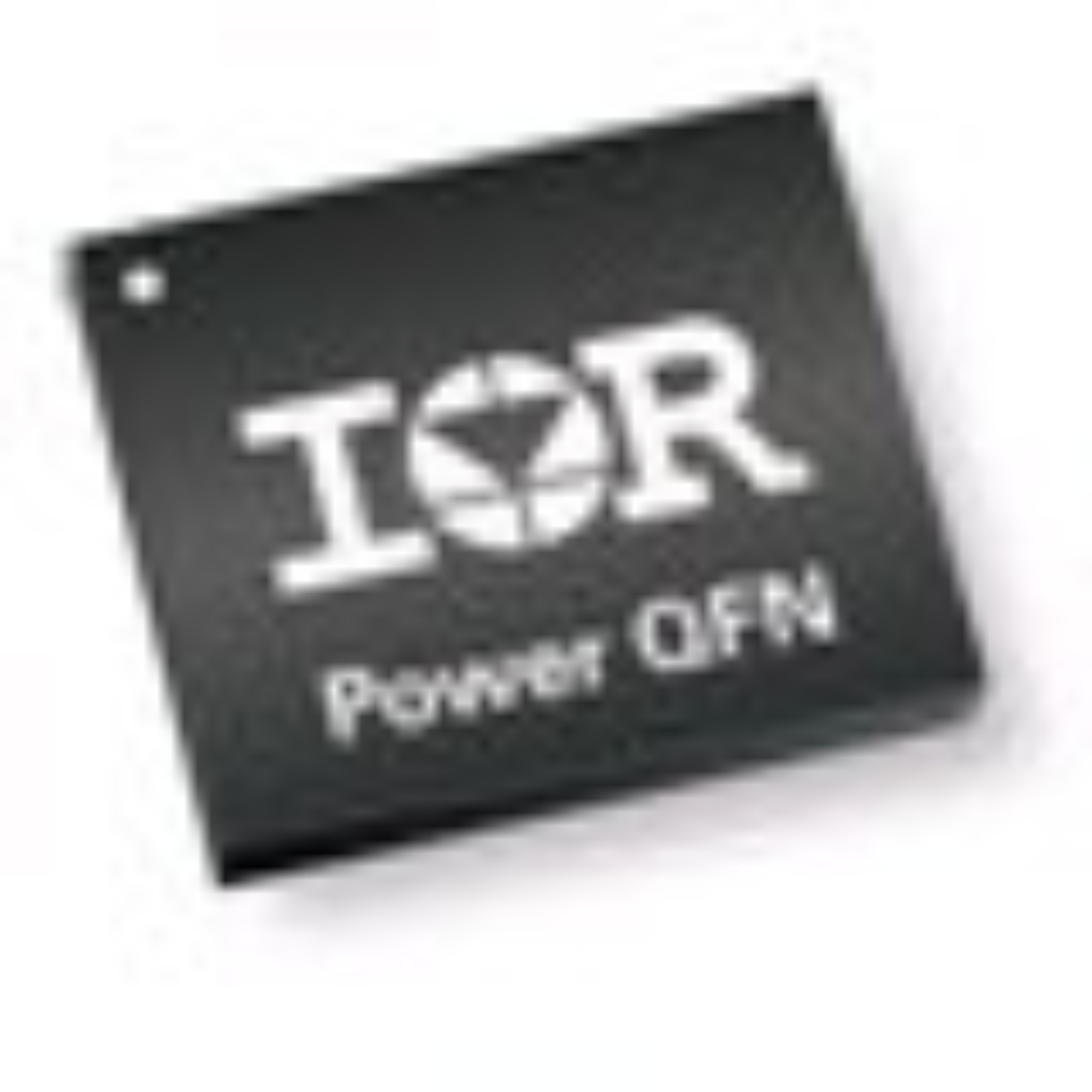

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CHL8510
Manufacturer

Infineon
ChipWorker Part#

CW541028267
RoHS

Lead free / RoHS Compliant
Description

12V High Efficiency MOSFET Driver with Variable Gate Drive
Documentation

Datasheet

CHL8510 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CHL8510 Specifications

Attribute	Attribute Value

Part Number	CHL8510
Manufacturer	Infineon
ChipWorker Part#	CW541028267
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	DFN-10
	expand all
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Benefits:
Drives both high-side and low-side MOSFETs in a synchronous buck configuration
Large drivers designed to drive 6nF server class FETs
Low side driver - 4A source / 6A sink
High side driver - 3A source / 4A sink
Transitions times and Propagation delays < 10ns
Independent variable gate voltage for both high and low side drivers from 4.5V to 13.2V
Improves efficiency
Compatible with CHiL controller VGD feature
Integrated bootstrap diode
Reduces external component count
Capable of high switching frequencies from 200kHz up to greater than 1MHz
Configurable PWM modes of operation
CHiL Active Tri-Level (ATL), disables both MOSFETs in 30ns with no hold-off time
Generic tristate PWM with hold-off
Adaptive non-overlap protection minimizes diode conduction time
