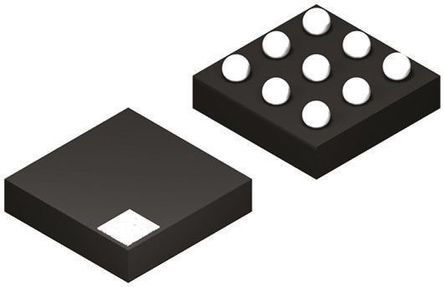

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CSD22202W15
Manufacturer

TI
ChipWorker Part#

CW5841380
Category

MOSFET, MOSFET Transistor
Package

DSBGA-9
Description

DSBGA P-CH 8V 10A
Documentation

Datasheet

CSD22202W15 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CSD22202W15 Specifications

Attribute	Attribute Value

Part Number	CSD22202W15
Manufacturer	TI
ChipWorker Part#	CW5841380
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	9 Pin
Case/Package	DSBGA-9
Polarity	P-CH
Power Dissipation	1.5 W
Drain to Source Voltage (Vds)	8 V
Continuous Drain Current (Ids)	10A
Rise Time	8.4 ns
Input Capacitance (Ciss)	1390pF @4V(Vds)
Fall Time	38 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.5W (Ta)
	expand all
Size-Length	1.5 mm
Size-Width	1.5 mm
Size-Height	0.62 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The device is designed to deliver the lowest on resistance and gate charge in the smallest outline possible with excellent thermal characteristics in an ultra-low profile. Low on resistance coupled with the small footprint and low profile make the device ideal for battery operated space constrained applications.
