CSPEMI201AG - ON Semiconductor

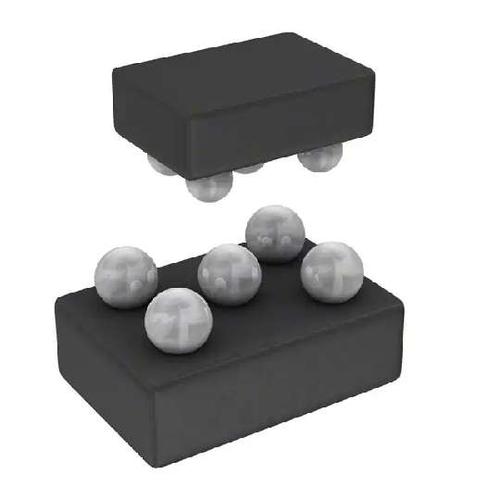

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

CSPEMI201AG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW29088604
Category

RFI Shielding
Package

CSP-5
Description

RC (Pi) EMI Filter 2nd Order Low Pass 2Channel R = 10Ω, C = 100pF 5-UFBGA, WLCSP
Documentation

Datasheet

CSPEMI201AG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

CSPEMI201AG Specifications

Attribute	Attribute Value

Part Number	CSPEMI201AG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW29088604
Category	RFI Shielding
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	CSP-5
Capacitance	100 pF
Halogen Free Status	Halogen Free
Number of Channels	2 Channel
Resistance	10 Ω
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Resistance (DC Max)	10 Ω
	expand all
Size-Length	1 mm
Size-Width	1.45 mm
Size-Height	0.72 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

The CSPEMI201AG is a dual low-pass filter array integrating two pi-style filters (C-R-C) that reduce EMI/RFI emissions while at the same time providing ESD protection. This part is custom-designed to interface with a speaker port on a cellular telephone or similar device. Each high quality filter provides more than 35dB attenuation in the 800-2700 MHz range. These pi-style filters support bidirectional filtering, controlling EMI both to and from a speaker element. They also support bipolar signals with a cutoff frequency of 31MHz, enabling audio signals to pass through without distortion.
Features | | Benefits
---|---|---
| | | | |
Two lines of EMI suppression with integrated ESD protection
| |
Suppresses noise off of strong analog and digital audio lines, provides ESD protection in a monolythic Chip Scale Package
Extremely low lead inductance for optimum filter and ESD performance
| |
Using Chip Scale Packaging to eliminate the long wires associated with packaging
