D4015L - Littelfuse

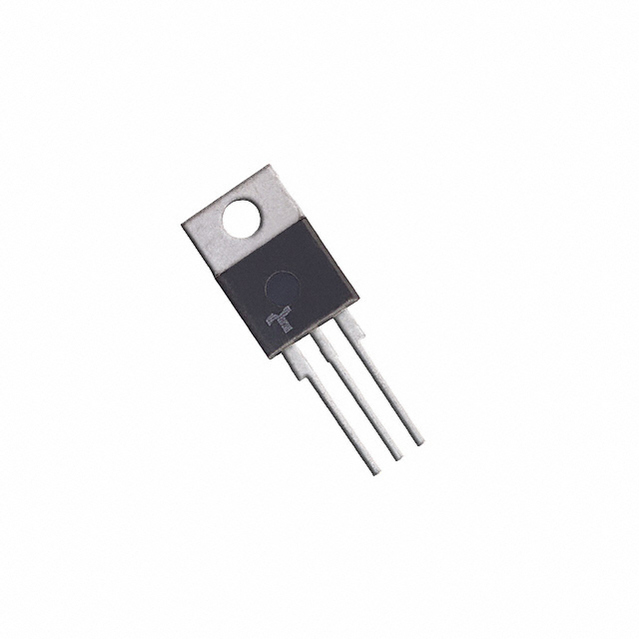

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

D4015L
Manufacturer

Littelfuse
ChipWorker Part#

CW89912579
Category

Power Diode
Package

TO-220-3
Description

Diode Switching 400V 9.5A 3Pin(3+Tab) TO-220AB Isolated
Documentation

Datasheet

D4015L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

D4015L Specifications

Attribute	Attribute Value

Part Number	D4015L
Manufacturer	Littelfuse
ChipWorker Part#	CW89912579
Category	Power Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Output Current	≤15.0 A
Number of Positions	3 Position
Forward Voltage	1.6 V
Polarity	Standard
Reverse recovery time	4 µs
Forward Current	9.5 A
Max Forward Surge Current (Ifsm)	225 A
Maximum Forward Voltage (Max)	1.6 V
Forward Current (Max)	9.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	-40℃ ~ 125℃
	expand all
Size-Length	10.67 mm
Size-Width	4.78 mm
Size-Height	9.4 mm
Product Lifecycle Status	Obsolete
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17

Product Description

Description
Silicon rectifers that are excellent for DC phase control applications with motor loads. Isolated mounting tab allows for use in circuits with common anode or common cathode connections.
Features & Benefts
• RoHS Compliant
• Glass – passivated junctions
• Voltage capability up to 1000 V
• Surge capability up to 350 A
