DCR021205P ,DC to DC Converter - TI

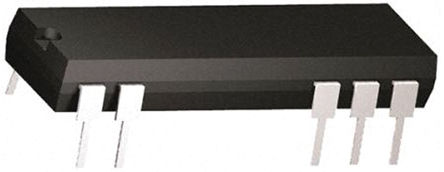

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

107 points

Part No

DCR021205P
Manufacturer

TI
ChipWorker Part#

CW4738440
Category

DC to DC Converter
Package

DIP-18
Description

Module DC-DC 12Vin 1Out 5V 0.4A 2W 10Pin PDIP Tube
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 21.73

Buy DCR021205P

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

DCR021205P Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

DCR021205P Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	DCR021205P
Manufacturer	TI
ChipWorker Part#	CW4738440
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	10 Pin
Case/Package	DIP-18
Frequency	800 kHz
Power Rating	2 W
Number of Outputs	1 Output
Input Voltage (DC)	12.0 V
Output Voltage	5 V
Output Current	400 mA
Quiescent Current	15.0 mA
Number of Regulated Outputs	1 Output
Output Power	2 W
Isolation Voltage	1 kV
Switching Frequency	400 kHz
Input Voltage (Max)	13.2 V
Input Voltage (Min)	10.8 V
Output Current (Max)	400 mA
Input Power (Max)	2 W
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	10.8V ~ 13.2V
	expand all
Size-Length	22.4 mm
Size-Width	6.10 mm
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The DCR02 family is a series of high-efficiency, input-isolated, output-regulated DC/DC converters. In addition to 2−W nominal, galvanically-isolated output power capability, this range of converters offers very low output noise and high accuracy.
The DCR02 family is implemented in standard molded device packaging, providing standard JEDEC outlines suitable for high-volume assembly.
The DCR02 family is manufactured using the same technology as standard device packages, thereby achieving very high reliability.
