IRF7204PBF - Infineon

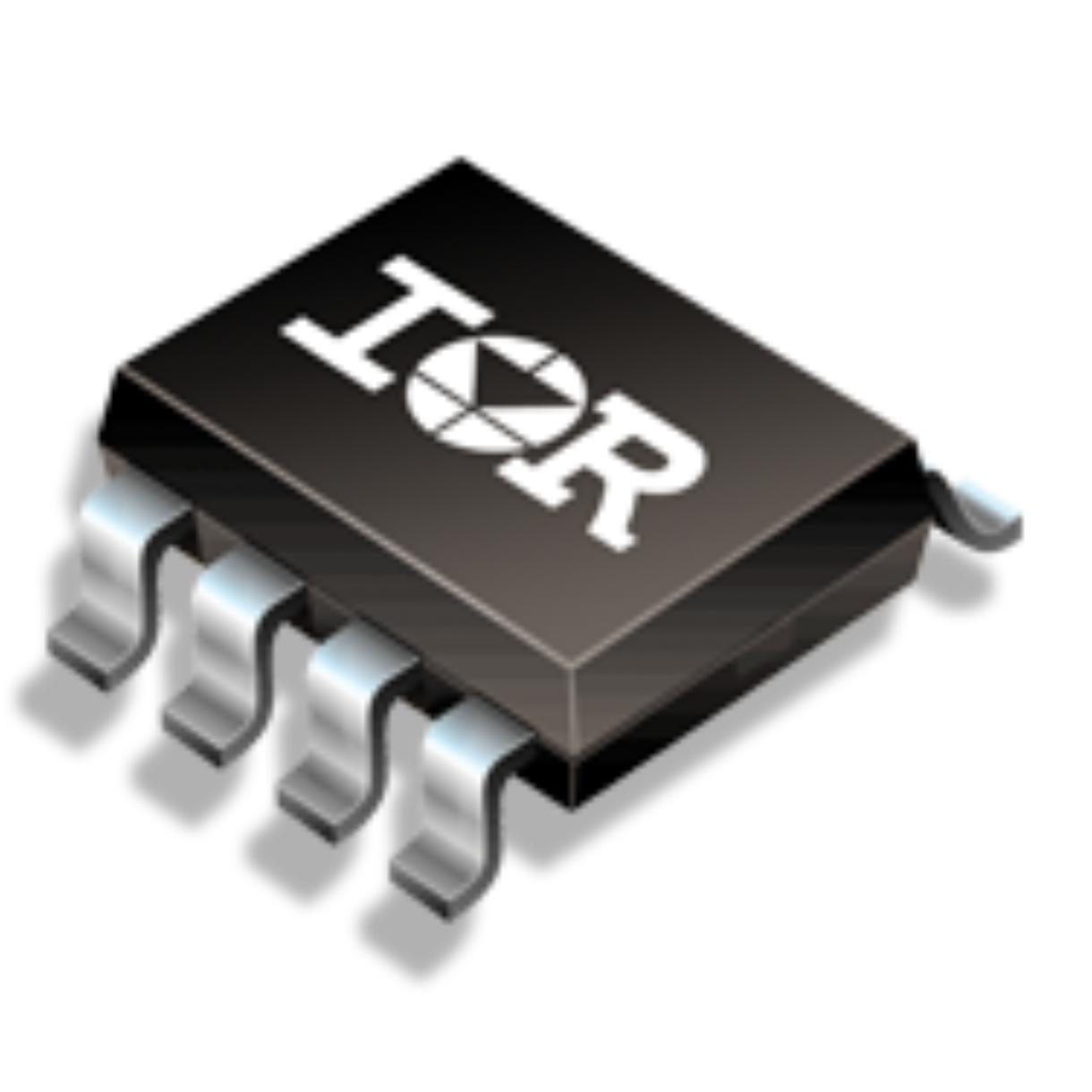

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF7204PBF
Manufacturer

Infineon
ChipWorker Part#

CW10997593
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

SOIC P-CH 20V 5.3A
Documentation

Datasheet

IRF7204PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF7204PBF Specifications

Attribute	Attribute Value

Part Number	IRF7204PBF
Manufacturer	Infineon
ChipWorker Part#	CW10997593
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	2.5 W
Number of Channels	1 Channel
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.06 Ω
Polarity	P-Channel
Power Dissipation	2.5 W
Threshold Voltage	2.5 V
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	5.3A
Rise Time	26 ns
Thermal Resistance	50℃/W (RθJC)
Input Capacitance (Ciss)	860pF @10V(Vds)
Input Power (Max)	2.5 W
Fall Time	68 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5W (Tc)
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

Benefits:
RoHS Compliant
Low RDS(on)
Industry-leading quality
Dynamic dv/dt Rating
Fast Switching
Fully Avalanche Rated
175°C Operating Temperature
P-Channel MOSFET
