DF15005S - Diodes

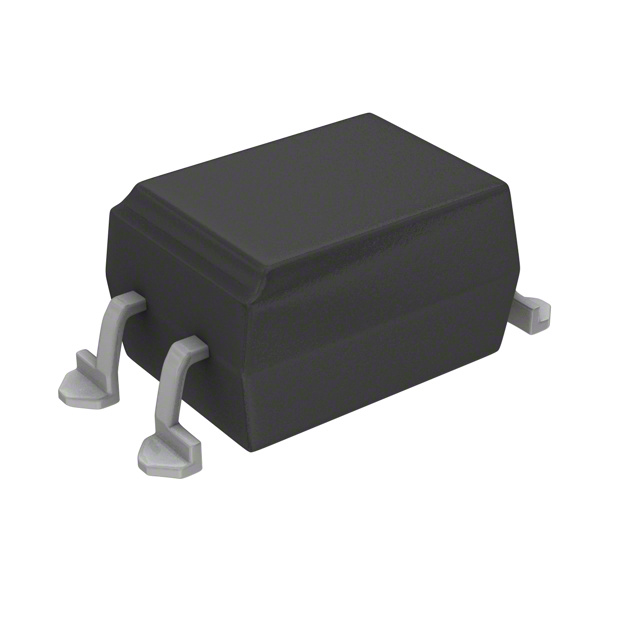

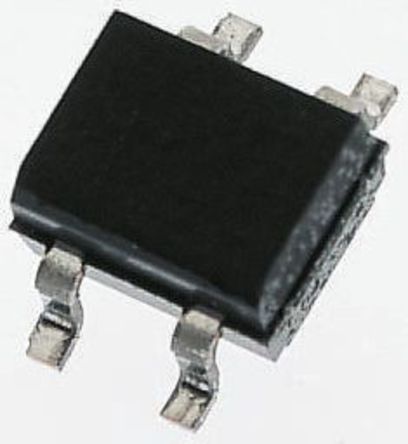

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DF15005S
Manufacturer

Diodes
ChipWorker Part#

CW89259884
Category

Bridge Rectifier
Package

SMD-4
Description

Bridge Rectifiers 1.5A 50V
Documentation

Datasheet

DF15005S Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DF15005S Specifications

Attribute	Attribute Value

Part Number	DF15005S
Manufacturer	Diodes
ChipWorker Part#	CW89259884
Category	Bridge Rectifier
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SMD-4
Forward Voltage	1.1 V
Forward Current	1.5 A
Max Forward Surge Current (Ifsm)	50 A
Forward Current (Max)	1.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	expand all
Size-Length	8.51 mm
Size-Width	6.5 mm
Size-Height	3.4 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Features
Glass passivated die construction
Diffused junction
Low forward voltage drop, high current capability
Surge overload rating to 50A peak
Designed for surface mount application
Plastic material – UL Recognition flammability classification 94V–0
This series is UL listed under recognized component index, file number E95060
