MJW3281AG - ON Semiconductor

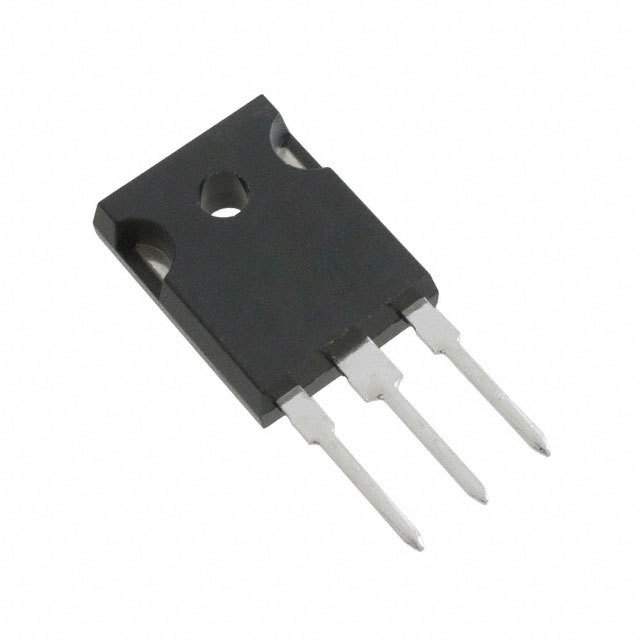

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

MJW3281AG
Manufacturer

ON Semiconductor
ChipWorker Part#

CW12963037
Category

BJT Transistor, BJT
Package

TO-247-3
Description

TO-247 NPN 230V 15A
Documentation

Datasheet

MJW3281AG Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

MJW3281AG Specifications

Attribute	Attribute Value

Part Number	MJW3281AG
Manufacturer	ON Semiconductor
ChipWorker Part#	CW12963037
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	230 V
Current Rating	15.0 A
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	200 W
Gain Bandwidth Product	30 MHz
Breakdown Voltage (Collector to Emitter)	230 V
Continuous Collector Current	15A
hFE Min	50
hFE Max	200
Input Power (Max)	200 W
DC Current Gain (hFE)	125
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
Power Dissipation (Max)	200000 mW
	expand all
Size-Length	16.26 mm
Size-Width	5.3 mm
Size-Height	21.08 mm
Material	Silicon
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The MJW3281A Bipolar Complementary Audio Power Transistor is a power transistor for high power audio, disk head positioners and other linear applications.
Features
---
|
Designed for 100 W Audio Frequency
Gain Complementary: Gain Linearity from 100 mA to 7 A
hFE = 45 (Min) @ IC = 8 A
Low Harmonic Distortion
High Safe Operation Area - 1 A/100 V @ 1 Second
High fT \- 30 MHz Typical
