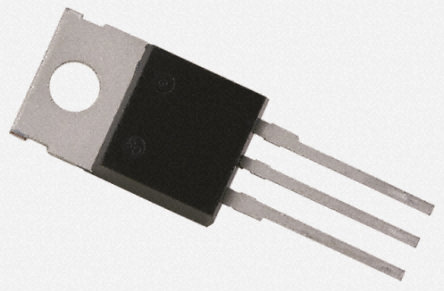

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

DRV102T
Manufacturer

TI
ChipWorker Part#

CW32331990
Category

FET Driver
Package

TO-220-7
Description

TEXAS INSTRUMENTS DRV102T SOLENOID/VALVE DRIVER 1Channel 2.7A D2PAK-7
Documentation

Datasheet

DRV102T Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

DRV102T Specifications

Attribute	Attribute Value

Part Number	DRV102T
Manufacturer	TI
ChipWorker Part#	CW32331990
Category	FET Driver
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	TO-220-7
Frequency	24 kHz
Supply Voltage (DC)	8.00V (min)
Voltage Rating (DC)	60.0 V
Number of Outputs	1 Output
Input Voltage (DC)	24.0 V
Output Voltage	1.7 V
Output Current	2.7 A
Number of Channels	1 Channel
Output Current (Max)	2 A
Fall Time (Max)	2.5 ns
Fall Time (Max)	2.5 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	8V ~ 60V
Supply Voltage (Max)	60 V
Supply Voltage (Min)	8 V
Input Voltage	24 V
	expand all
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The DRV102T is a high-side Power Switch employing a pulse-width modulated (PWM) output. Its rugged design is optimized for driving electromechanical devices such as valves, solenoids, relays, actuators and positioners. It is also ideal for driving thermal devices such as heaters and lamps. PWM operation conserves power and reduces heat rise in the device, resulting in higher reliability. In addition, adjustable PWM allows fine control of the power delivered to the load. Time from dc output to PWM output is externally adjustable. It can be set to provide a strong initial closure, automatically switching to a soft hold mode for power savings. Duty cycle can be controlled by a resistor, analogue voltage or digital-to-analogue converter for versatility. A flag output indicates thermal shutdown and over/under current limit. A wide supply range allows use with a variety of actuators.
PWM output
Internal 24kHz oscillator
Digital control input
Adjustable delay and duty cycle
Overcurrent/undercurrent indicator
Fully protected - Thermal shutdown with indicator and internal current limit
Green product and no Sb/Br
