DRV8825PWPR ,Motor Driver - TI

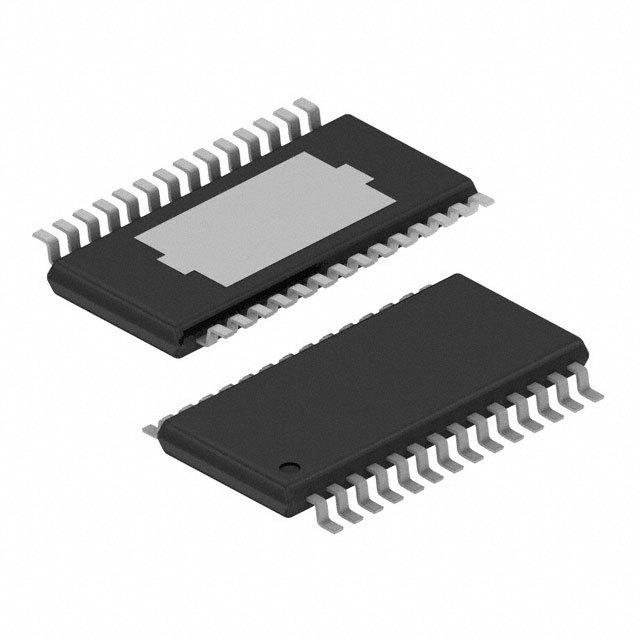

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

244 points

Part No

DRV8825PWPR
Manufacturer

TI
ChipWorker Part#

CW127835
Category

Motor Driver
Package

HTSSOP-28
Description

2.5A Bipolar Stepper Motor Driver with On-Chip 1/32 Microstepping Indexer (Step/Dir Ctrl) 28-HTSSOP -40℃ to 85℃
