EL7104CSZ ,FET Driver - Intersil

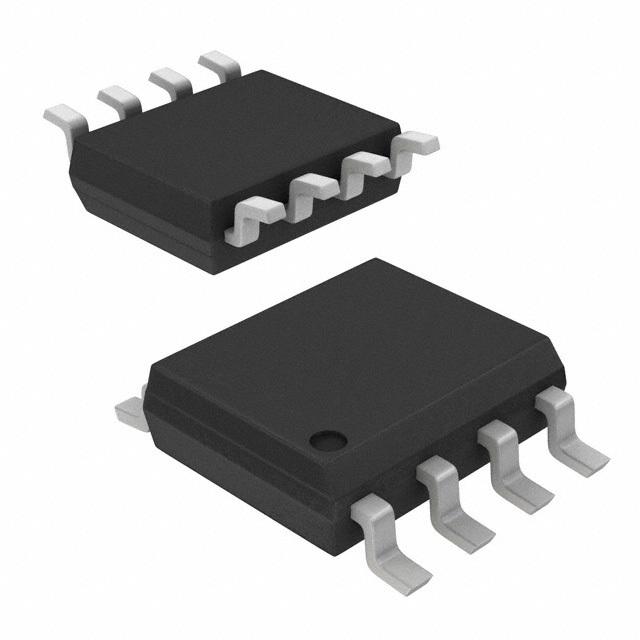

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

97 points

Part No

EL7104CSZ
Manufacturer

Intersil
ChipWorker Part#

CW63463610
Category

FET Driver
Package

SOIC-8
Description

EL7104 Series 4A 16V Single 1.5Ω Non-Inv Mosfet Driver - SOIC-8
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 4.66

Buy EL7104CSZ

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

EL7104CSZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

EL7104CSZ Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	EL7104CSZ
Manufacturer	Intersil
ChipWorker Part#	CW63463610
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	10 MHz
Supply Voltage (DC)	4.50V (min)
Rise/Fall Time	7.5ns, 10ns
Number of Outputs	2 Output
Output Voltage	16.5 V
Output Current	4.00 A
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	0.57 W
Rise Time	20 ns
Fall Time	20 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 16V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	4.5 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Similar & Replacement Parts

Similar products

Product Description

The EL7104CSZ is a single-channel high speed matched Power MOSFET Driver IC improves the operation of the industry-standard TC-4420/29 clock drivers. The Elantec version is a very high speed driver capable of delivering peak currents of 1A into highly capacitive loads. The high speed performance is achieved by means of a proprietary Turbo-Driver circuit that speeds up input stages by tapping the wider voltage swing at the output. Improved speed and drive capability are enhanced by matched rise and fall delay times. These matched delays maintain the integrity of input-to-output pulse-widths to reduce timing errors and clock skew problems. This improved performance is accompanied by a 10-fold reduction in supply currents over bipolar drivers, yet without the delay time problems commonly associated with CMOS drivers.
Industry-standard driver replacement
Improved response times
Matched rise and fall times
Reduced clock skew
Low output impedance
Low input capacitance
High noise immunity
Improved clocking rate
Low supply current
Wide operating range
Separate drain connections
