ELC12D102E - Panasonic

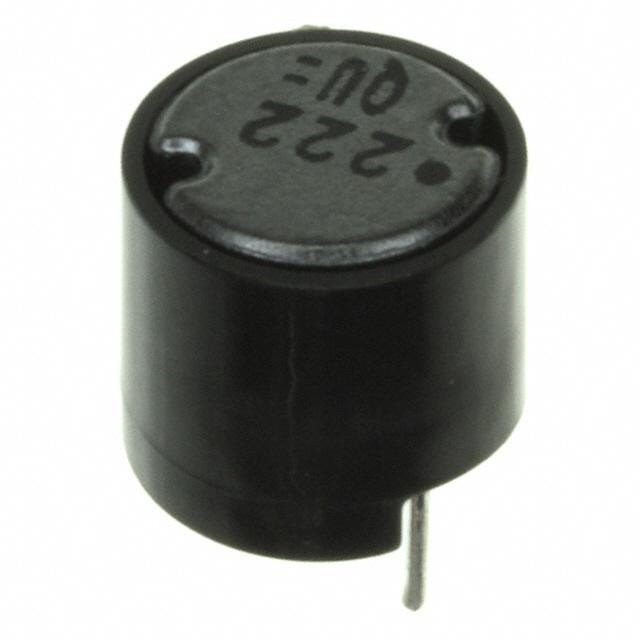

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ELC12D102E
Manufacturer

Panasonic
ChipWorker Part#

CW91267533
Category

Inductor
Description

Ind Choke Coil Wirewound 1mH 10% 10kHz Ferrite 870mA RDL
Documentation

Datasheet

ELC12D102E Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ELC12D102E Specifications

Attribute	Attribute Value

Part Number	ELC12D102E
Manufacturer	Panasonic
ChipWorker Part#	CW91267533
Category	Inductor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Capacitance Tolerance	±10 %
Inductance	1 mH
Self Resonant Frequency	10.0 kHz
Resistance	720 mΩ
Resonant Frequency	10.0 kHz
Shielding	No
Inductance Tolerance	±10 %
Test Frequency	0.01 MHz
Resistance (DC Max)	0.72 Ω
	expand all
Size-Length	14 mm
Size-Width	12.5 mm
Size-Height	16.5 mm
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
