EMVH101ADA220MJA0G - Chemi-Con

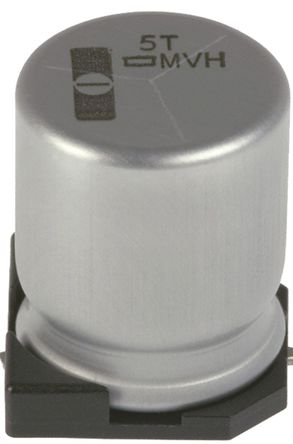

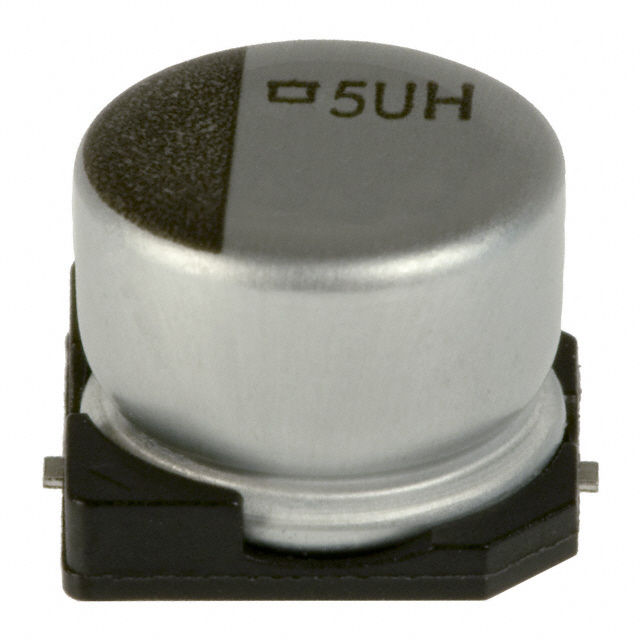

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

EMVH101ADA220MJA0G
Manufacturer

Chemi-Con
ChipWorker Part#

CW35671075
Category

Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package

SMD-0
Description

Cap Aluminum 22uF 100V 20% (10 X 10mm) SMD 0.55Ω 115mA 2000H 125℃ Cardboard T/R
Documentation

Datasheet

EMVH101ADA220MJA0G Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

EMVH101ADA220MJA0G Specifications

Attribute	Attribute Value

Part Number	EMVH101ADA220MJA0G
Manufacturer	Chemi-Con
ChipWorker Part#	CW35671075
Category	Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMD-0
Voltage Rating (DC)	100 V
Capacitance	22 µF
Equivalent Series Resistance (ESR)	550mΩ @100kHz
Capacitance Tolerance	±20 %
Ripple Current	115 mA
Ripple Current (Low Frequency)	106.95mA @120Hz
Ripple Current (High Frequency)	115mA @100kHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	100 V
	expand all
Size-Length	10.3 mm
Size-Width	10.3 mm
Size-Height	10 mm
Size-Diameter	10.0 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
Life (Hours)	2000 h
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8532220020

Product Description

22µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 550mOhm @ 100kHz 2000 Hrs @ 125°C
