EXC24CB102U - Panasonic

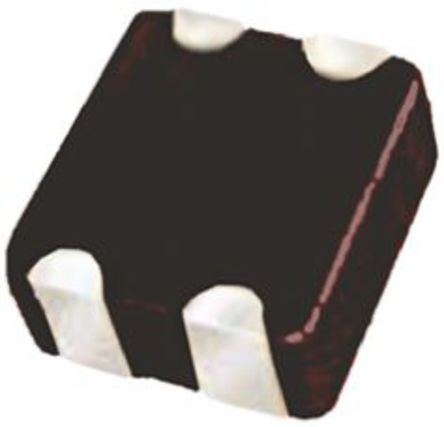

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

EXC24CB102U
Manufacturer

Panasonic
ChipWorker Part#

CW86127030
Category

Inductor Choke
Package

1210
Description

Common Mode Chokes Dual 1KΩ 100MHz 50mA 1.5Ω DCR SMD T/R
Documentation

Datasheet

EXC24CB102U Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

EXC24CB102U Specifications

Attribute	Attribute Value

Part Number	EXC24CB102U
Manufacturer	Panasonic
ChipWorker Part#	CW86127030
Category	Inductor Choke
Documentation	Datasheet
Mounting Style	Surface Mount
Case/Package	1210
Frequency	100 MHz
Shielding	Yes
Test Frequency	100 MHz
Current Rating (Max)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	5 VDC
Voltage Rating	5 VDC
Resistance (DC Max)	1.5 Ω
	expand all
Size-Length	1.25 mm
Size-Width	1.15 mm
Size-Height	0.6 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Features Burst/radiation noise ﬁ ltering for audio circuits The optimally magnetic-coupled ferrite beads allow for the ﬁ ltering of both common and normal mode noises The strong multi-layer structure provides high resistance to reﬂ ow soldering heat and a high mounting reliability Magnetic shield type High Impedance : 220 to 1 k （EXC24CB type) Low Resistance Value : 0.4 max. (EXC24CP type) High Impedance : 600 , Low Resistance Value : 0.9 max. (EXC24CN type) Explanation of Part Numbers EXC24CB/CP Type Construction Dimensions in mm (not to scale) Recommended Applications Receiver lines, speaker lines, microphone lines and headset of mobile phones. Audio signal lines of Portable audio equipment, PCs,
