FDC2214EVM - TI

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FDC2214EVM
Manufacturer

TI
ChipWorker Part#

CW5537244
Category

Microprocessor Development Kit
Package

-
Description

Evaluation Module, Sensing, Touch, Proximity, Capacitance to Digital Converter, 25MHz CPU, 28Bit
Documentation

Datasheet

FDC2214EVM Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FDC2214EVM Specifications

Attribute	Attribute Value

Part Number	FDC2214EVM
Manufacturer	TI
ChipWorker Part#	CW5537244
Category	Microprocessor Development Kit
Documentation	Datasheet
Case/Package	-
Supply Voltage	2.7V ~ 3.6V
	expand all
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead

Product Description

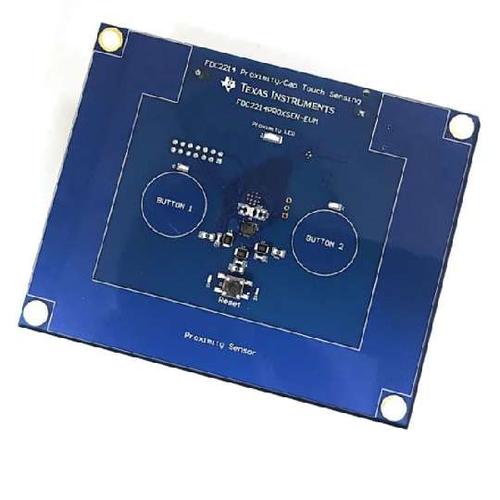

The FDC2214EVM is an Evaluation Module used to demonstrate the use of capacitive sensing technology to detect the presence of any target object, which can be either conductive or non-conductive. The module includes two example PCB capacitive sensors that connect to 2 of the 4 channels of the FDC2214. An MSP430 MCU is used to interface the FDC to a host computer. This module is designed to provide the user with maximum flexibility for system prototyping. Therefore it is perforated at two locations, one between the PCB capacitive sensor and the FDC2214 and another between the FDC2214 and the MSP430 interface. The first perforation gives the user the option to snap off the capacitive sensor from the module and experiment with custom sensor designs. The second perforation allows the user to connect the FDC2214 and capacitive sensor to a different MCU system or use multiple such sensors in one system. An accompanying GUI allows for maximum flexibility and quick system prototyping.
Multiple board perforations - provide maximum evaluation and system design flexibility
Includes example of PCB capacitive sensor for two different channels
Operates via PC through USB interface
Accompanying GUI for quick concept demonstration and data capture
