FDH333 - Fairchild

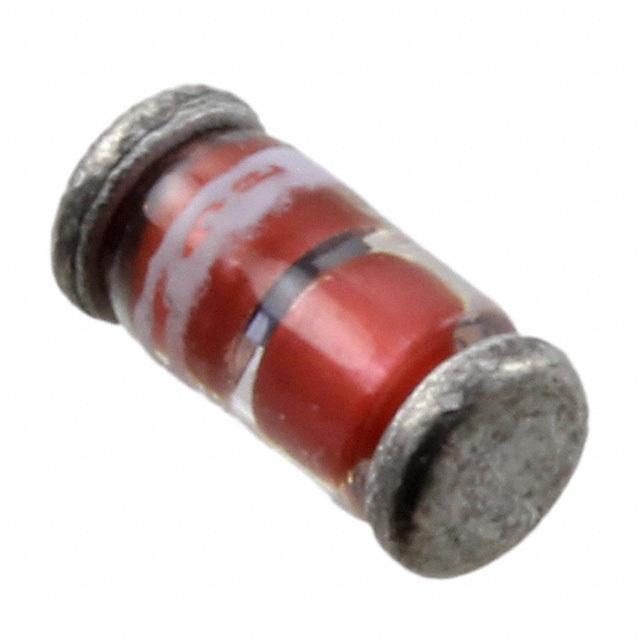

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FDH333
Manufacturer

Fairchild
ChipWorker Part#

CW51361587
Category

TVS Diode
Package

DO-35
Description

FDH333 Series 1V 200mA 125V Max Reverse Voltage Small Signal Diode - DO-35
Documentation

Datasheet

FDH333 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FDH333 Specifications

Attribute	Attribute Value

Part Number	FDH333
Manufacturer	Fairchild
ChipWorker Part#	CW51361587
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-35
Voltage Rating (DC)	150 V
Current Rating	200 mA
Capacitance	6.00 pF
Output Current	≤200 mA
Number of Positions	2 Position
Forward Voltage	1.15V @300mA
Polarity	Standard
Thermal Resistance	300℃/W (RθJA)
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	1.15 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	expand all
Size-Length	4.56 mm
Size-Width	1.91 mm
Size-Height	1.91 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The FDH333 is a high conductance low leakage Small Signal Diode for general usage and suitable for many different applications.
Cathode is denoted with a black band
-65 to 200°C Storage temperature range
175°C Operating junction temperature

expand all
