FDS8949 - ON Semiconductor

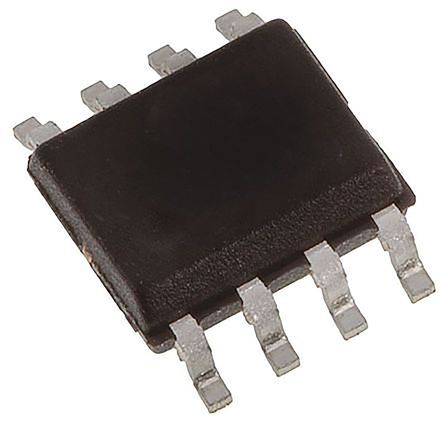

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FDS8949
Manufacturer

ON Semiconductor
ChipWorker Part#

CW1083804
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

Trans MOSFET N-CH 40V 6A 8Pin SOIC N T/R
Documentation

Datasheet

FDS8949 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FDS8949 Specifications

Attribute	Attribute Value

Part Number	FDS8949
Manufacturer	ON Semiconductor
ChipWorker Part#	CW1083804
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.021 Ω
Power Dissipation	2 W
Threshold Voltage	1.9 V
Drain to Source Voltage (Vds)	40 V
Rise Time	5 ns
Input Capacitance (Ciss)	955pF @20V(Vds)
Input Power (Max)	2 W
Fall Time	3 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2000 mW
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The FDS8949 is a dual N-channel logic level MOSFET produced using advanced PowerTrench® process. It has been especially tailored to minimize the ON-state resistance and yet maintain superior switching performance. It is well suited for low voltage and battery powered applications where low in-line power loss and fast switching are required.
