3209578 - Phoenix

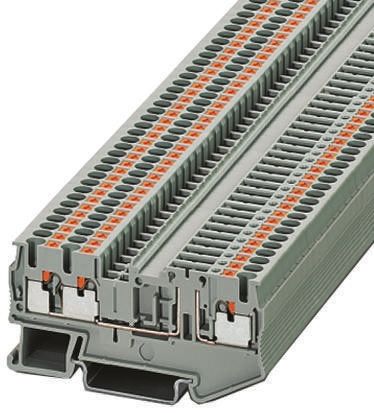

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

3209578
Manufacturer

Phoenix
ChipWorker Part#

CW5460938
Category

Terminal Block, Connector Terminal
Description

Conn; Term Blk; DIN Rail; Feed Thru; Push-In Conn; 26-12AWG; Gray; 5.2mm W
Documentation

Datasheet

3209578 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

3209578 Specifications

Attribute	Attribute Value

Part Number	3209578
Manufacturer	Phoenix
ChipWorker Part#	CW5460938
Category	Terminal Block, Connector Terminal
Documentation	Datasheet
Mounting Style	DIN Rail
Number of Contacts	4 Contact
Wire Gauge	0.14mm² ~ 4mm²
Current Rating	24 A
Number of Rows	4 Row
Number of Circuits	1 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	4 Position
Current Rating (Max)	24 A
Voltage Rating (Max)	800 V
Voltage Rating	800 V
Operating Voltage (Max)	800 V
	expand all
Size-Length	72.2 mm
Size-Width	5.2 mm
Size-Height	44 mm
Housing Color	Gray
Color	Gray
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536904000
ECCN Code	EAR99

Product Description

Reduce fatigue, save time and simplify wiring with Phoenix Contact"s push-in terminal blocks. These tool-less terminal blocks use a direct push-in connection and require 50 percent lower insertion force when connecting solid conductors or conductors with ferrules. As part of the CLIPLINE Complete system, push-in terminal blocks are compatible with standard system accessories, including bridging, checking and marking. They deliver maximum flexibility in a variety of options, including feed-through, multi-conductor, component and pluggable terminal blocks, and can be combined with screw, spring-cage and fast connection terminal blocks.
**Features:**
* Orange Push Button Located on the Actuation Shaft Opens the Spring to the Maximum Wiring Space of (4 mm2)/AWG 12 for Fast, Clear Wiring and High-Contacting Safety
* Three Standard Marker Grooves Allow Individual Terminal Point Labeling with the One Marking Material
* Front Connection for Space-Saving Convenient Wiring
