NDTS0505C - muRata

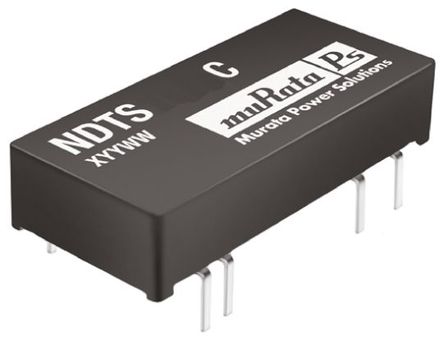

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

NDTS0505C
Manufacturer

muRata
ChipWorker Part#

CW46339200
Category

DC to DC Converter, DC/DC Converter
Package

DIP-24
Description

Module DC-DC 5Vin 1Out 5V 0.6A 3W 8Pin DIP Tube
Documentation

Datasheet

NDTS0505C Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

NDTS0505C Specifications

Attribute	Attribute Value

Part Number	NDTS0505C
Manufacturer	muRata
ChipWorker Part#	CW46339200
Category	DC to DC Converter, DC/DC Converter
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-24
Supply Voltage (DC)	5.00 V
Power Rating	3 W
Number of Outputs	1 Output
Input Voltage (DC)	4.50V ~ 9.00V
Output Voltage	5 V
Output Current	0.6 A
Output Power	3 W
Isolation Voltage	1 kV
Switching Frequency	650 kHz
Input Voltage (Max)	9 V
Input Voltage (Min)	4.5 V
Input Voltage (DC Max)	9 V
Input Voltage (DC Min)	4.5 v
Output Current (Max)	600 mA
Input Power (Max)	3 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5V ~ 9V
	expand all
Size-Length	32.26 mm
Size-Width	14.66 mm
Size-Height	7 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The NDTS0505C DC to DC converter and switching regulator module from Murata Power Solutions can help you adjust the voltage to meet your specifications. It has a voltage of 5 V. This part has a temperature range of -40 °C to 85 °C. This device comes in tube packaging.
