LPS22HB - ST Microelectronics

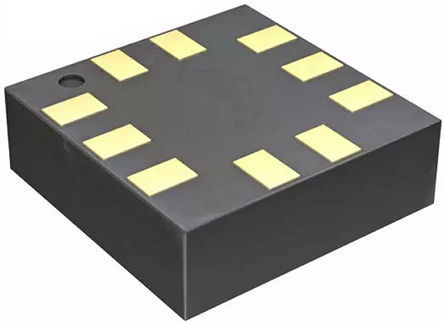

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

38 points

Part No

LPS22HB
Manufacturer

ST Microelectronics
ChipWorker Part#

CW167023670
Package

LGA
Description

ABSOLUTE, PEIZORESISTIVE PRESSURE SENSOR, 3.77-18.274Psi, SQUARE, SURFACE MOUNT, 2 X 2MM, 0.76MM HEIGHT, ROHS COMPLIANT, HLGA-10
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 0.92

Buy LPS22HB

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

LPS22HB Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

LPS22HB Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	LPS22HB
Manufacturer	ST Microelectronics
ChipWorker Part#	CW167023670
Documentation	Datasheet
Number of Pins	10 Pin
Case/Package	LGA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Product Lifecycle Status	Active
Packaging	Tray
RoHS	Compliant with Exemption

Similar & Replacement Parts

Similar products

Product Description

The LPS22HB is an ultra-compact piezoresistive absolute pressure sensor which functions as a digital output barometer. The device comprises a sensing element and an IC interface which communicates through I2C or SPI from the sensing element to the application.
The sensing element, which detects absolute pressure, consists of a suspended membrane manufactured using a dedicated process developed by ST.
The LPS22HB is available in a full-mold, holed LGA package (HLGA). It is guaranteed to operate over a temperature range extending from -40 °C to +85 °C. The package is holed to allow external pressure to reach the sensing element.
**Key Features**
260 to 1260 hPa absolute pressure range
Current consumption down to 3 μA
High overpressure capability: 20x full-scale
Embedded temperature compensation
24-bit pressure data output
16-bit temperature data output
ODR from 1 Hz to 75 Hz
SPI and I²C interfaces
Embedded FIFO
Interrupt functions: Data Ready, FIFO flags, pressure thresholds
Supply voltage: 1.7 to 3.6 V
High shock survivability: 22,000 g
Small and thin package
ECOPACK® lead-free compliant
