3046139 - Phoenix

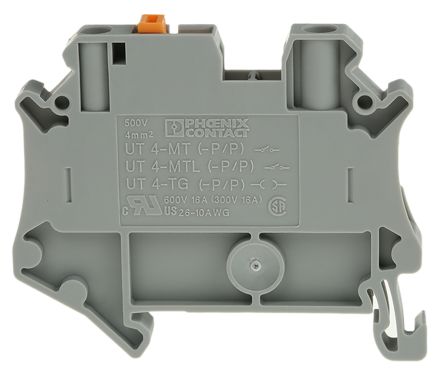

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

3046139
Manufacturer

Phoenix
ChipWorker Part#

CW45519436
Category

Terminal Block, Connector Terminal
Package

600
Description

Conn; Term Blk; DIN Rail; Screw; 1; 2; 26-10AWG; Gray; 16A; 600V; M3; PA
Documentation

Datasheet

3046139 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

3046139 Specifications

Attribute	Attribute Value

Part Number	3046139
Manufacturer	Phoenix
ChipWorker Part#	CW45519436
Category	Terminal Block, Connector Terminal
Documentation	Datasheet
Mounting Style	DIN Rail
Case/Package	600
Pin Pitch	6.2 mm
Number of Contacts	2 Contact
Wire Gauge	10AWG ~ 26AWG
Current Rating	16 A
Number of Rows	2 Row
Number of Circuits	1 Circuit
Flammability Rating	UL 94 V-0
Number of Positions	2 Position
Current Rating (Max)	16 A
Operating Temperature (Max)	110 ℃
Operating Temperature (Min)	-50 ℃
Voltage Rating (Max)	500 V
Voltage Rating	500 V
Operating Voltage (Max)	500 V
	expand all
Size-Length	56.8 mm
Size-Width	6.2 mm
Size-Height	55 mm
Housing Color	Gray
Color	Gray
Insulation Material	Nylon
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536904000
ECCN Code	EAR99

Product Description

Universal for every application. The screw connection system is known and accepted throughout the world and can be used in any application.
**Features**
* Universal Screw Connection Technology
* Maintenance-Free Operation
* Non-Corrosive Nickel-Plated Copper Alloy Parts
* UL Approvals for Multiple Conductor Connections
