FGA60N60UFDTU ,IGBT Transistor, IGBT Module - Fairchild

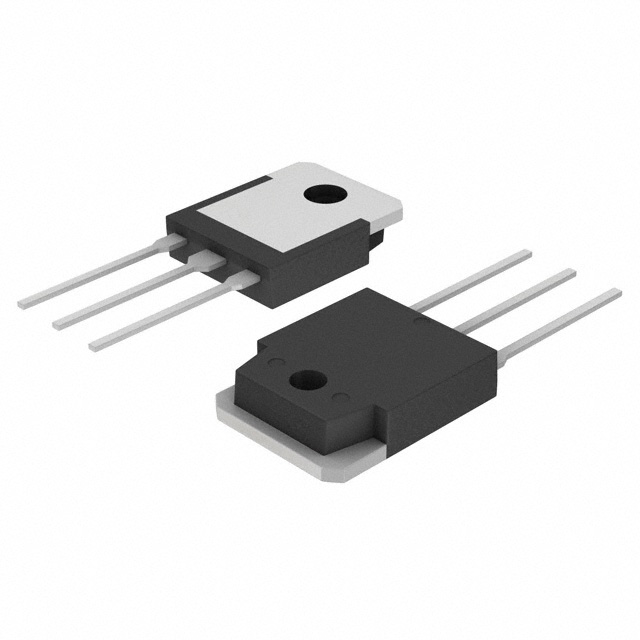

The pictures are for reference only, and the specific specifications can be found in the product manual.

Popularity Score

59 points

Part No

FGA60N60UFDTU
Manufacturer

Fairchild
ChipWorker Part#

CW83084963
Category

IGBT Transistor, IGBT Module
Package

TO-3-3
Description

Trans IGBT Chip N-CH 600V 120A 298000mW 3Pin(3+Tab) TO-3PN Rail
Documentation

Datasheet
Ships from

Moscow
Наличие

In Stock
Estimated Price

$ 3.91

Buy FGA60N60UFDTU

Stock is limited and changes quickly. Our 24/7 online sales team is ready to respond to your inquiries and orders at any time.

Real stock check

Best price from distributors

Engineer support

FGA60N60UFDTU Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Arrow	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
Mouser	{{noList.partNo}} {{noList.mfr}}	{{ low_stock_text }}	1	{{weeks_text}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	1	6 - 8 {{delivery_date}}

Update Data

Chipworker Certification

ChipWorker Qualifications — ISO 9001, ISO 45001, ISO 14001, MA Certification. Over 11 years of experience, more than 1000 clients in Russia, support for small MOQ

11+ years sourcing experience

1000+ russia customers

ISO certified supplier

Support small MOQ

*Photos of Our Actual 800 m² Warehouse

FGA60N60UFDTU Specifications

Consulting Engineer >>

Attribute	Attribute Value

Part Number	FGA60N60UFDTU
Manufacturer	Fairchild
ChipWorker Part#	CW83084963
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3-3
Number of Positions	3 Position
Power Dissipation	298 W
Breakdown Voltage (Collector to Emitter)	600 V
Reverse recovery time	47 ns
Input Power (Max)	298 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	298 W
	expand all
Size-Length	15.8 mm
Size-Width	5 mm
Size-Height	20.1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Similar & Replacement Parts

Similar products

Product Description

The FGA60N60UFDTU is a 600V Field Stop IGBT with high current capability. This new IGBT is suitable for soft switching applications such as induction cookers and inverterized microwave ovens. FS IGBT provides lower VCE (sat) during on-state and lower switching losses during the turn-off instant. However, since it doesn"t include an intrinsic body diode in common with all other types of IGBTs, it is generally packaged together with an additional Fast Recovery Diode (FRD) for most switching applications. This product is general usage and suitable for many different applications.
