FOXLF018S - FOX Electronics

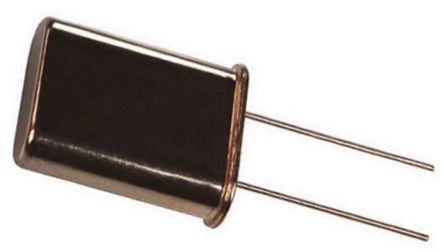

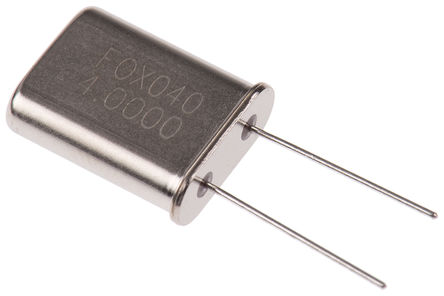

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

FOXLF018S
Manufacturer

FOX Electronics
ChipWorker Part#

CW18122955
Category

Crystal
Package

HC-49-ULF
Description

Crystal 1.843MHz 30ppm (Tol) 50ppm (Stability) 13pF FUND 800Ω 2Pin HC-49/ULF Thru-Hole
Documentation

Datasheet

FOXLF018S Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

FOXLF018S Specifications

Attribute	Attribute Value

Part Number	FOXLF018S
Manufacturer	FOX Electronics
ChipWorker Part#	CW18122955
Category	Crystal
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	HC-49-ULF
Frequency	1.8432 MHz
Frequency Stability	±50 ppm
Frequency Tolerance	±30 ppm
Equivalent Series Resistance (ESR)	750 Ω
Load Capacitance	13 pF
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-20 ℃
	expand all
Size-Length	11.05 mm
Size-Width	4.65 mm
Size-Height	13.46 mm
Operating Temperature	-20℃ ~ 70℃
Product Lifecycle Status	Last Time Buy
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

**Features:**
* Fundamental to 40 MHz
* Frequency Tolerance: ±30 ppm @ 25°C
* Operating Temperature Range: –20°C to +70°C
* Drive Level: 2.0 mW @ 1.8432 to 3 MHz, 1.0 mW @ 3 to +180 MHz
* Aging Per Year: ±5 ppm
* Other Tolerances, Stabilities, Packages, and Operating Temperature Ranges Available
